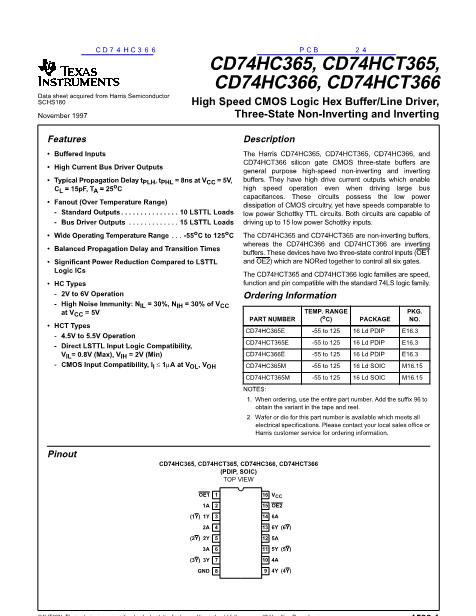

CD74HC365, CD74HCT365,
CD74HC366, CD74HCT366
Data sheet acquired from Harris Semiconductor
SCHS180
November 1997
High Speed CMOS Logic Hex Buffer/Line Driver,
Three-State Non-Inverting and Inverting
Description
The Harris CD74HC365, CD74HCT365, CD74HC366, and
CD74HCT366 silicon gate CMOS three-state buffers are
general purpose high-speed non-inverting and inverting
buffers. They have high drive current outputs which enable
high speed operation even when driving large bus
capacitances. These circuits possess the low power
dissipation of CMOS circuitry, yet have speeds comparable to
low power Schottky TTL circuits. Both circuits are capable of
driving up to 15 low power Schottky inputs.
The CD74HC365 and CD74HCT365 are non-inverting buffers,
whereas the CD74HC366 and CD74HCT366 are inverting
buffers. These devices have two three-state control inputs (OE1
and OE2) which are NORed together to control all six gates.
The CD74HCT365 and CD74HCT366 logic families are speed,
function and pin compatible with the standard 74LS logic family.
Features
鈥?Buffered Inputs
鈥?High Current Bus Driver Outputs
鈥?Typical Propagation Delay t
PLH
, t
PHL
= 8ns at V
CC
= 5V,
C
L
= 15pF, T
A
= 25
o
C
鈥?Fanout (Over Temperature Range)
- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
鈥?Wide Operating Temperature Range . . . -55
o
C to 125
o
C
鈥?Balanced Propagation Delay and Transition Times
鈥?Signi鏗乧ant Power Reduction Compared to LSTTL
Logic ICs
鈥?HC Types
- 2V to 6V Operation
- High Noise Immunity: N
IL
= 30%, N
IH
= 30% of V
CC
at V
CC
= 5V
鈥?HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility,
V
IL
= 0.8V (Max), V
IH
= 2V (Min)
- CMOS Input Compatibility, I
l
鈮?/div>
1碌A(chǔ) at V
OL
, V
OH
[ /Title
(CD74
HC365
,
CD74
HCT36
5,
CD74
HC366
,
CD74
HCT36
6)
/Sub-
ject
(High
Speed
Ordering Information
PART NUMBER
CD74HC365E
CD74HCT365E
CD74HC366E
CD74HC365M
CD74HCT365M
NOTES:
1. When ordering, use the entire part number. Add the suf鏗亁 96 to
obtain the variant in the tape and reel.
2. Wafer or die for this part number is available which meets all
electrical specifications. Please contact your local sales office or
Harris customer service for ordering information.
TEMP. RANGE
(
o
C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
PACKAGE
16 Ld PDIP
16 Ld PDIP
16 Ld PDIP
16 Ld SOIC
16 Ld SOIC
PKG.
NO.
E16.3
E16.3
E16.3
M16.15
M16.15
Pinout
CD74HC365, CD74HCT365, CD74HC366, CD74HCT366
(PDIP, SOIC)
TOP VIEW
OE1 1
1A 2
(1Y) 1Y 3
2A 4
(2Y) 2Y 5
3A 6
(3Y) 3Y 7
GND 8
16 V
CC
15 OE2
14 6A
13 6Y (6Y)
12 5A
11 5Y (5Y)
10 4A
9 4Y (4Y)
CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper IC Handling Procedures.
