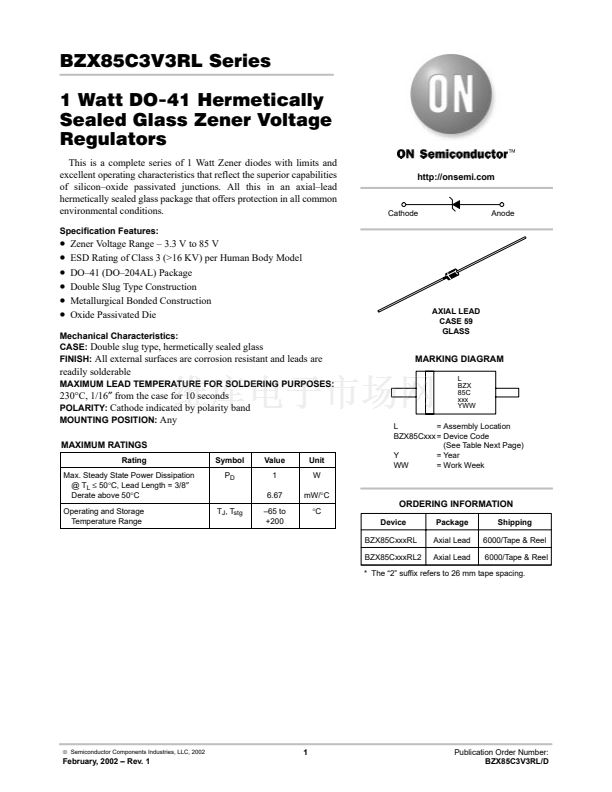

BZX85C3V3RL Series

1 Watt DO-41 Hermetically

Sealed Glass Zener Voltage

Regulators

This is a complete series of 1 Watt Zener diodes with limits and

excellent operating characteristics that reflect the superior capabilities

of silicon鈥搊xide passivated junctions. All this in an axial鈥搇ead

hermetically sealed glass package that offers protection in all common

environmental conditions.

Specification Features:

http://onsemi.com

Cathode

Anode

鈥?/div>

Zener Voltage Range 鈥?3.3 V to 85 V

ESD Rating of Class 3 (>16 KV) per Human Body Model

DO鈥?1 (DO鈥?04AL) Package

Double Slug Type Construction

Metallurgical Bonded Construction

Oxide Passivated Die

Mechanical Characteristics:

CASE:

Double slug type, hermetically sealed glass

FINISH:

All external surfaces are corrosion resistant and leads are

AXIAL LEAD

CASE 59

GLASS

MARKING DIAGRAM

L

BZX

85C

xxx

YWW

readily solderable

MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES:

230擄C, 1/16鈥?from the case for 10 seconds

POLARITY:

Cathode indicated by polarity band

MOUNTING POSITION:

Any

MAXIMUM RATINGS

Rating

Max. Steady State Power Dissipation

@ T

L

鈮?/div>

50擄C, Lead Length = 3/8鈥?/div>

Derate above 50擄C

Operating and Storage

Temperature Range

Symbol

P

D

Value

1

6.67

T

J

, T

stg

鈥?5 to

+200

Unit

W

mW/擄C

擄C

L

= Assembly Location

BZX85Cxxx = Device Code

=

(See Table Next Page)

Y

= Year

WW

= Work Week

ORDERING INFORMATION

Device

BZX85CxxxRL

BZX85CxxxRL2

Package

Axial Lead

Shipping

6000/Tape & Reel

* The 鈥?鈥?suffix refers to 26 mm tape spacing.

漏

Semiconductor Components Industries, LLC, 2002

1

February, 2002 鈥?Rev. 1

Publication Order Number:

BZX85C3V3RL/D
