BZX84C8V2-V Datasheet

  • BZX84C8V2-V

  • Small Signal Zener Diodes

  • 452.75KB

  • 10頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

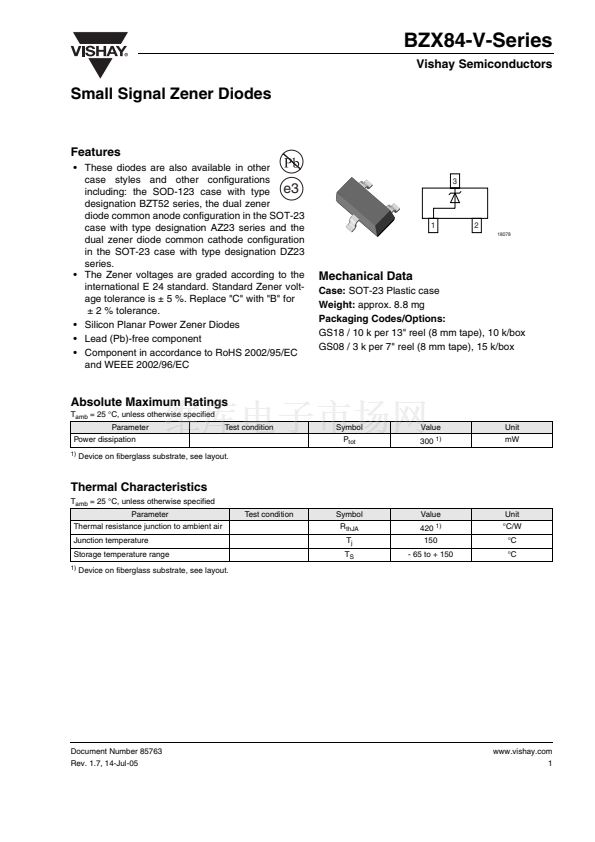

BZX84-V-Series
Vishay Semiconductors
Small Signal Zener Diodes
Features
鈥?These diodes are also available in other
case styles and other configurations
including: the SOD-123 case with type
e3
designation BZT52 series, the dual zener
diode common anode configuration in the SOT-23
case with type designation AZ23 series and the
dual zener diode common cathode configuration
in the SOT-23 case with type designation DZ23
series.
鈥?The Zener voltages are graded according to the
international E 24 standard. Standard Zener volt-
age tolerance is 鹵 5 %. Replace "C" with "B" for
鹵 2 % tolerance.
鈥?Silicon Planar Power Zener Diodes
鈥?Lead (Pb)-free component
鈥?Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
3
1
2
18078
Mechanical Data
Case:
SOT-23 Plastic case
Weight:
approx. 8.8 mg
Packaging Codes/Options:
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
Absolute Maximum Ratings
T
amb
= 25 擄C, unless otherwise specified
Parameter
Power dissipation
1)
Test condition
Symbol
P
tot
Value
300
1)
Unit
mW
Device on fiberglass substrate, see layout.
Thermal Characteristics
T
amb
= 25 擄C, unless otherwise specified
Parameter
Thermal resistance junction to ambient air
Junction temperature
Storage temperature range
1)
Test condition
Symbol
R
thJA
T
j
T
S
Value
420
1)
150
- 65 to + 150
Unit
擄C/W
擄C
擄C
Device on fiberglass substrate, see layout.
Document Number 85763
Rev. 1.7, 14-Jul-05
www.vishay.com
1
