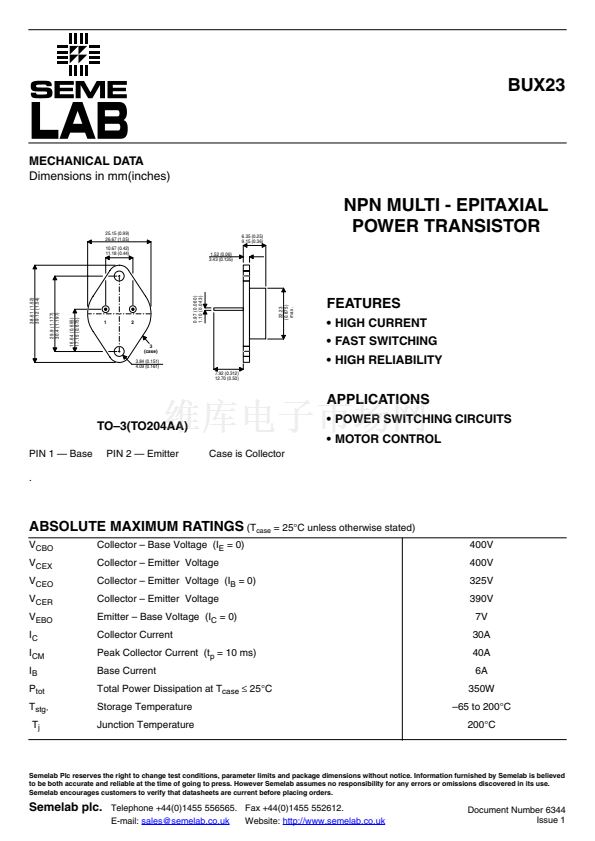

BUX23
MECHANICAL DATA
Dimensions in mm(inches)
25.15 (0.99)
26.67 (1.05)
10.67 (0.42)
11.18 (0.44)
1.52 (0.06)
3.43 (0.135)
6.35 (0.25)
9.15 (0.36)
NPN MULTI - EPITAXIAL
POWER TRANSISTOR
38.61 (1.52)
39.12 (1.54)
0.97 (0.060)
1.10 (0.043)
29.9 (1.177)
30.4 (1.197)
16.64 (0.655)
17.15 (0.675)
22.23
(0.875)
max.
FEATURES
鈥?HIGH CURRENT
鈥?FAST SWITCHING
鈥?HIGH RELIABILITY
1
2
3
(case)
3.84 (0.151)
4.09 (0.161)
7.92 (0.312)
12.70 (0.50)
APPLICATIONS
TO鈥?(TO204AA)
PIN 1 鈥?Base
.
PIN 2 鈥?Emitter
Case is Collector
鈥?POWER SWITCHING CIRCUITS
鈥?MOTOR CONTROL
ABSOLUTE MAXIMUM RATINGS
(T
case
= 25擄C unless otherwise stated)
V
CBO
V
CEX
V
CEO
V
CER
V
EBO
I
C
I
CM
I
B
P
tot
T
stg,
T
j
Collector 鈥?Base Voltage (I
E
= 0)
Collector 鈥?Emitter Voltage
Collector 鈥?Emitter Voltage (I
B
= 0)
Collector 鈥?Emitter Voltage
Emitter 鈥?Base Voltage (I
C
= 0)
Collector Current
Peak Collector Current (t
p
= 10 ms)
Base Current
Total Power Dissipation at T
case
鈮?/div>
25擄C
Storage Temperature
Junction Temperature
400V
400V
325V
390V
7V
30A
40A
6A
350W
鈥?5 to 200擄C
200擄C
Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believed
to be both accurate and reliable at the time of going to press. However Semelab assumes no responsibility for any errors or omissions discovered in its use.
Semelab encourages customers to verify that datasheets are current before placing orders.
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Document Number 6344
Issue 1
