DC COMPONENTS CO., LTD.
R
B05S
THRU
B10S
RECTIFIER SPECIALISTS

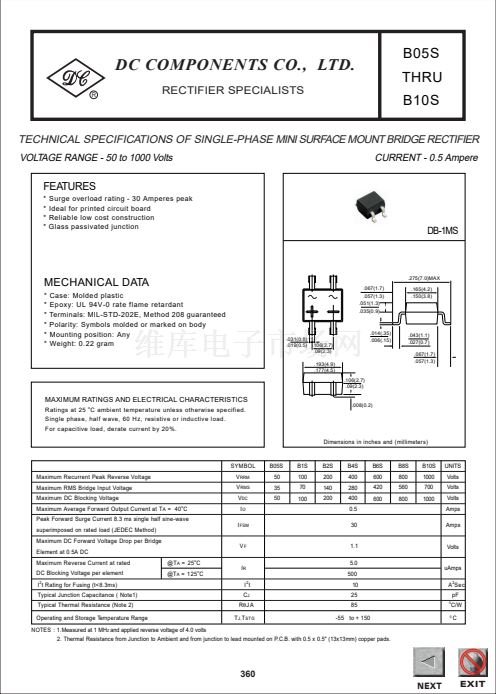

TECHNICAL SPECIFICATIONS OF SINGLE-PHASE MINI SURFACE MOUNT BRIDGE RECTIFIER
VOLTAGE RANGE - 50 to 1000 Volts
CURRENT - 0.5 Ampere
FEATURES
*
*
*
*
Surge overload rating - 30 Amperes peak
Ideal for printed circuit board
Reliable low cost construction
Glass passivated junction
DB-1MS
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: MIL-STD-202E, Method 208 guaranteed
* Polarity: Symbols molded or marked on body
* Mounting position: Any
* Weight: 0.22 gram
.275(7.0)MAX
.067(1.7)
.057(1.3)
.051(1.3)
.035(0.9)
.165(4.2)
.150(3.8)
.031(0.8)
.019(0.5) .106(2.7)
.09(2.3)
.193(4.9)
.177(4.5)
.106(2.7)
.09(2.3)
.014(.35)
.006(.15)
.043(1.1)
.027(0.7)
.067(1.7)
.057(1.3)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
.008(0.2)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Output Current at T
A
= 40 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum DC Forward Voltage Drop per Bridge
Element at 0.5A DC
Maximum Reverse Current at rated
DC Blocking Voltage per element
I
2
t Rating for Fusing (t<8.3ms)
Typical Junction Capacitance ( Note1)
Typical Thermal Resistance (Note 2)
Operating and Storage Temperature Range
NOTES : 1.Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
@T
A
= 25
o
C
@T
A
= 125
o
C
V
F
o
B05S
50
35
50
B1S
100
70
100
B2S
200
140
200
B4S
400
280
400
0.5
30
B6S
600
420
600
B8S
800
560
800
B10S
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
V
RRM
V
RMS
V
DC
I
O
I
FSM
1.1
5.0
500
Volts
uAmps
A
2
Sec
pF
0
I
R
I
2
t
C
J
R胃J A
T
J,
T
STG
10
25
85
-55 to + 150
C/W
C
0
2. Thermal Resistance from Junction to Ambient and from junction to lead mounted on P.C.B. with 0.5 x 0.5" (13x13mm) copper pads.
360
