PRELIMINARY
Am29F016B
16 Megabit (2 M x 8-Bit)
CMOS 5.0 Volt-only, Uniform Sector Flash Memory
DISTINCTIVE CHARACTERISTICS
s
5.0 V
鹵
10%, single power supply operation
鈥?Minimizes system level power requirements
s
Manufactured on 0.35 碌m process technology
鈥?Compatible with 0.5 碌m Am29F016 device
s
High performance
鈥?Access times as fast as 70 ns
s
Low power consumption
鈥?25 mA typical active read current
鈥?30 mA typical program/erase current
鈥?1 碌A typical standby current (standard access
time to active mode)
s
Flexible sector architecture
鈥?32 uniform sectors of 64 Kbytes each
鈥?Any combination of sectors can be erased
鈥?Supports full chip erase
鈥?Group sector protection:
A hardware method of locking sector groups to
prevent any program or erase operations within
that sector group

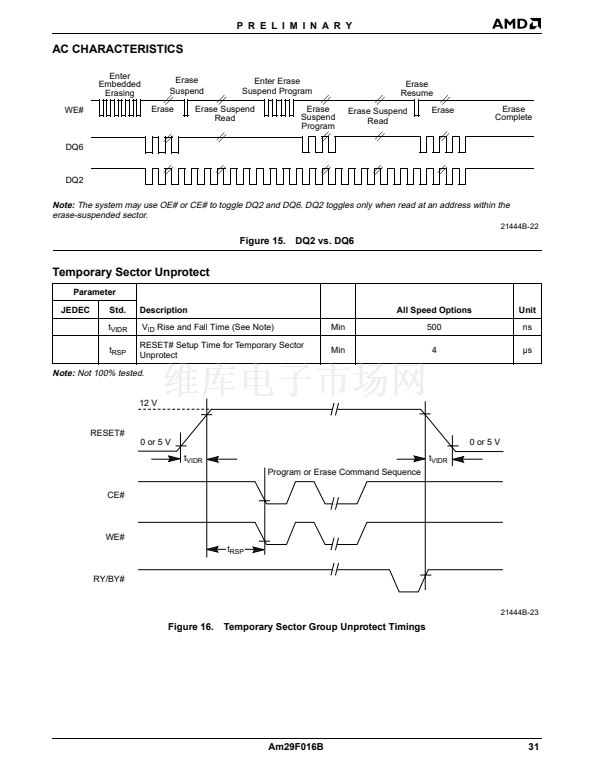

Temporary Sector Group Unprotect allows code
changes in previously locked sectors
s

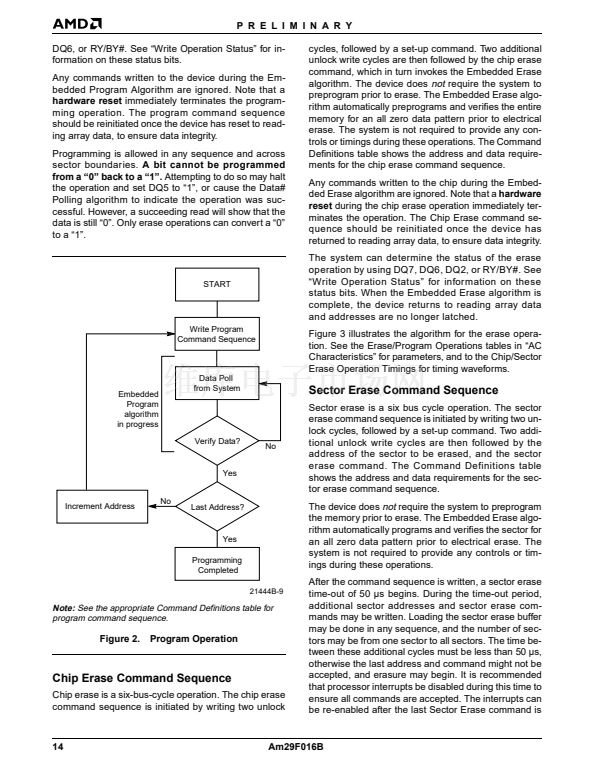

Embedded Algorithms
鈥?Embedded Erase algorithm automatically
preprograms and erases the entire chip or any
combination of designated sectors
鈥?Embedded Program algorithm automatically
writes and verifies bytes at specified addresses
s
Minimum 1,000,000 program/erase cycles per
sector guaranteed
s

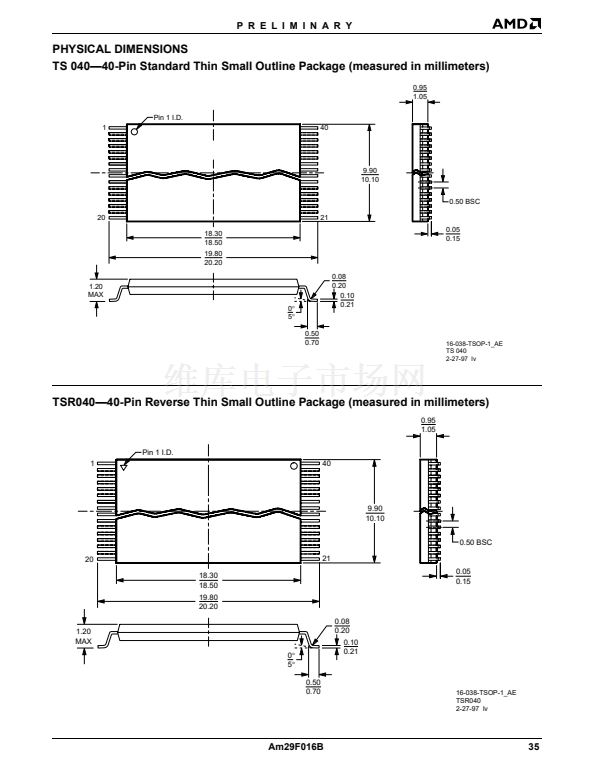

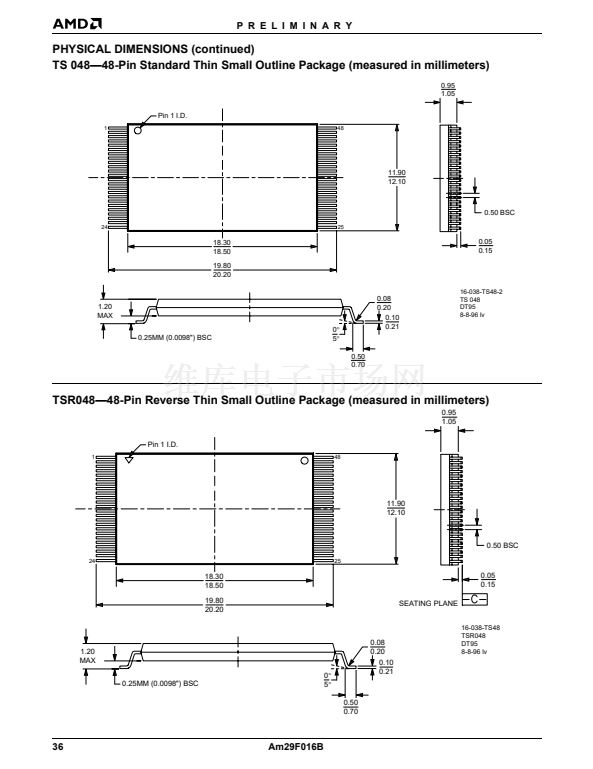

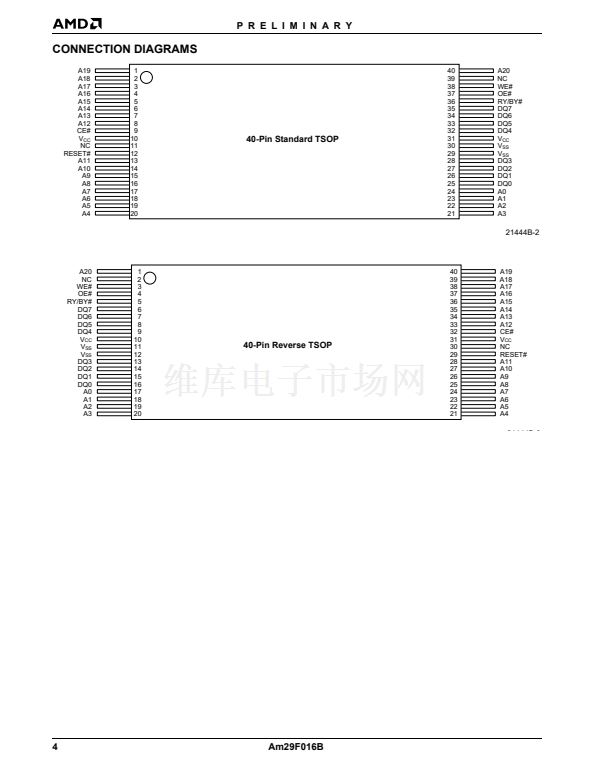

Package options
鈥?48-pin and 40-pin TSOP

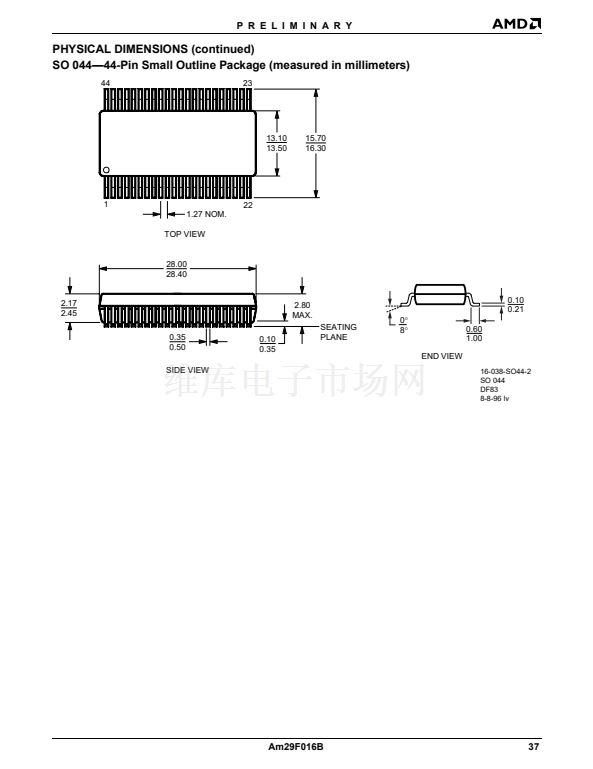

鈥?44-pin SO
s
Compatible with JEDEC standards
鈥?Pinout and software compatible with
single-power-supply Flash standard
鈥?Superior inadvertent write protection
s

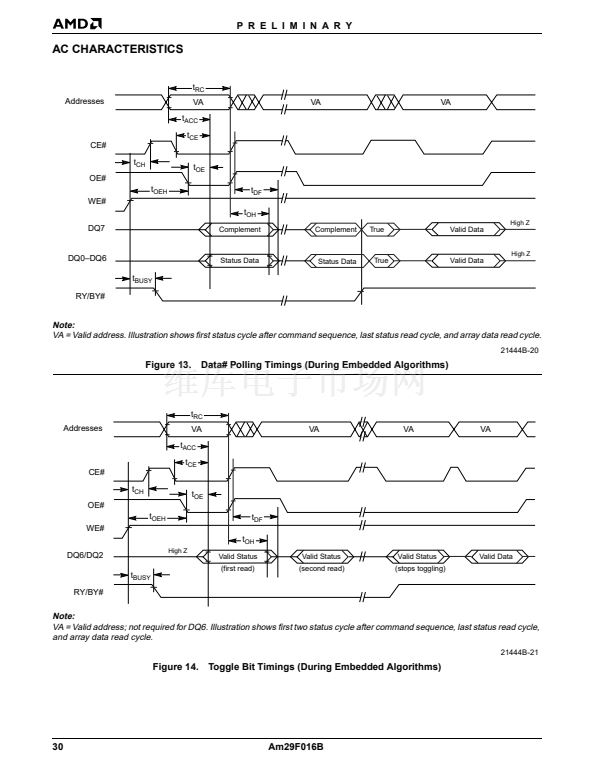

Data# Polling and toggle bits
鈥?Provides a software method of detecting
program or erase cycle completion
s
Ready/Busy# output (RY/BY#)
鈥?Provides a hardware method for detecting
program or erase cycle completion
s

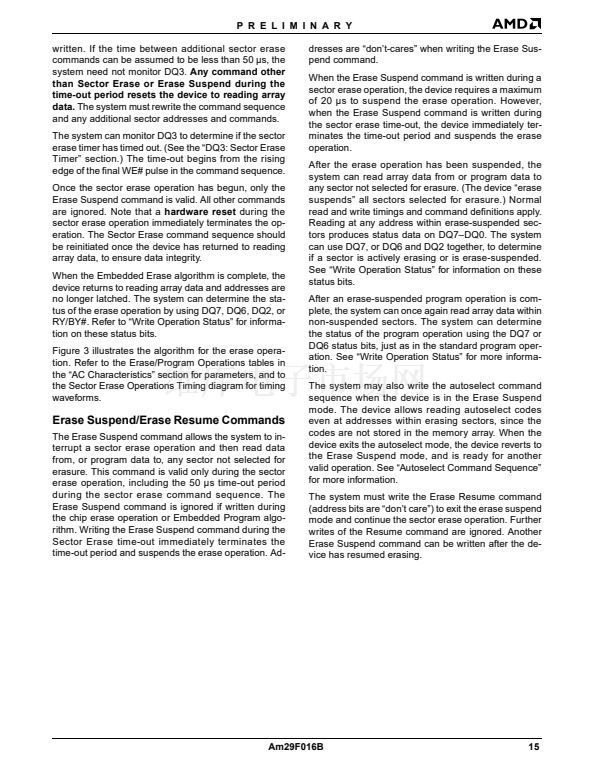

Erase Suspend/Erase Resume
鈥?Suspends a sector erase operation to read data
from, or program data to, a non-erasing sector,
then resumes the erase operation
s

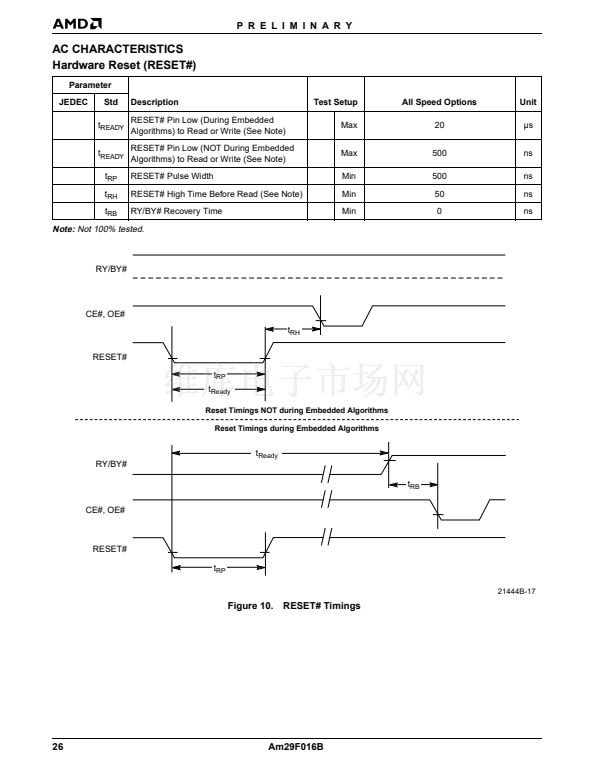

Hardware reset pin (RESET#)
鈥?Resets internal state machine to the read mode
Publication#
21444
Rev:
B
Amendment/+2
Issue Date:
April 1998
