AT27C080 Datasheet

  • AT27C080

  • 8-Megabit (1M x 8) OTP EPROM

  • 15頁

  • ATMEL   ATMEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

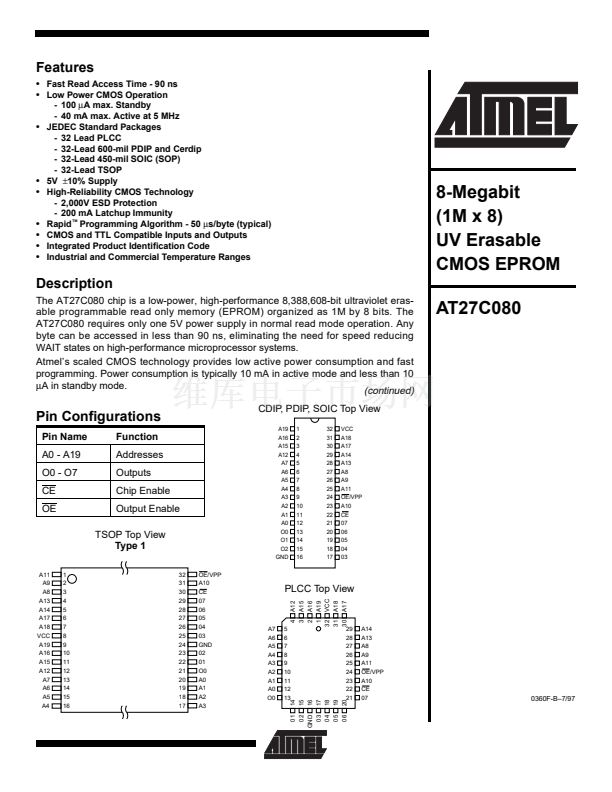

AT27C080
Features
鈥?/div>
Fast Read Access Time - 90 ns
鈥?/div>
Low Power CMOS Operation
鈥?/div>
- 100
碌A(chǔ)
max. Standby
- 40 mA max. Active at 5 MHz
JEDEC Standard Packages
- 32 Lead PLCC
- 32-Lead 600-mil PDIP and Cerdip
- 32-Lead 450-mil SOIC (SOP)
- 32-Lead TSOP
5V
鹵
10% Supply
High-Reliability CMOS Technology
- 2,000V ESD Protection
- 200 mA Latchup Immunity
Rapid
鈩?/div>
Programming Algorithm - 50
碌s/byte
(typical)
CMOS and TTL Compatible Inputs and Outputs
Integrated Product Identification Code
Industrial and Commercial Temperature Ranges
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
8-Megabit
(1M x 8)
UV Erasable
CMOS EPROM
AT27C080
Description
The AT27C080 chip is a low-power, high-performance 8,388,608-bit ultraviolet eras-
able programmable read only memory (EPROM) organized as 1M by 8 bits. The
AT27C080 requires only one 5V power supply in normal read mode operation. Any
byte can be accessed in less than 90 ns, eliminating the need for speed reducing
WAIT states on high-performance microprocessor systems.
Atmel鈥檚 scaled CMOS technology provides low active power consumption and fast
programming. Power consumption is typically 10 mA in active mode and less than 10
碌A(chǔ)
in standby mode.
(continued)
Pin Configurations
Pin Name
A0 - A19
O0 - O7
CE
OE
Function
Addresses
Outputs
Chip Enable
Output Enable
TSOP Top View
Type 1
A11
A9
A8
A13
A14
A17
A18
VCC
A19
A16
A15
A12
A7
A6
A5
A4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
OE/VPP
A10
CE
07
06
05
04
03
GND
02
01
O0
A0
A1
A2
A3
CDIP, PDIP, SOIC Top View
A19
A16
A15
A12
A7
A6
A5
A4
A3
A2
A1
A0
O0
O1
O2
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VCC
A18
A17
A14
A13
A8
A9
A11
OE/VPP
A10
CE
07
06
05
04
03
PLCC Top View
A12
A15
A16
A19
VCC
A18
A17
01
02
GND
03
04
05
06
14
15
16
17
18
19
20
A7
A6
A5
A4
A3
A2
A1
A0
O0
5
6
7
8
9
10
11
12
13
4
3
2
1
32
31
30
29
28
27
26
25
24
23
22
21
A14
A13
A8
A9
A11
OE/VPP
A10
CE
07
0360F-B鈥?/97
1
