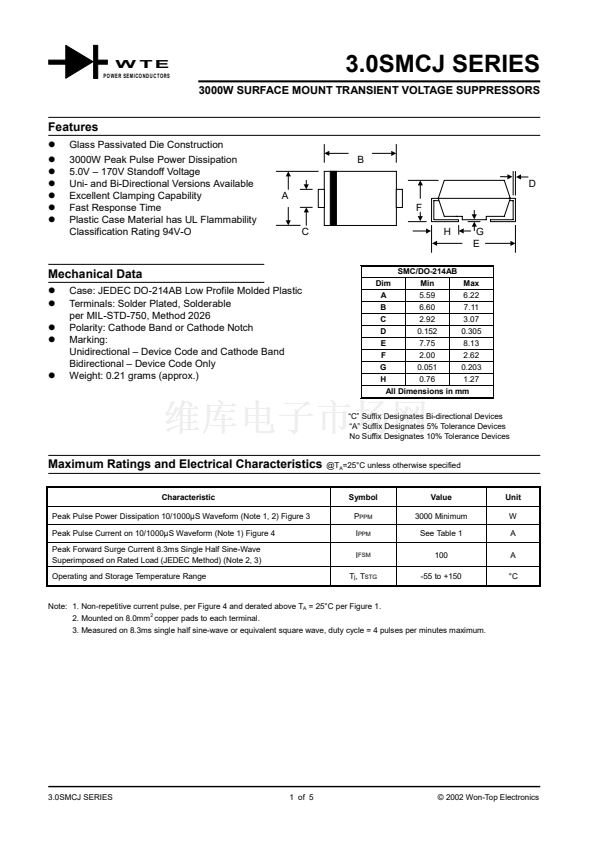

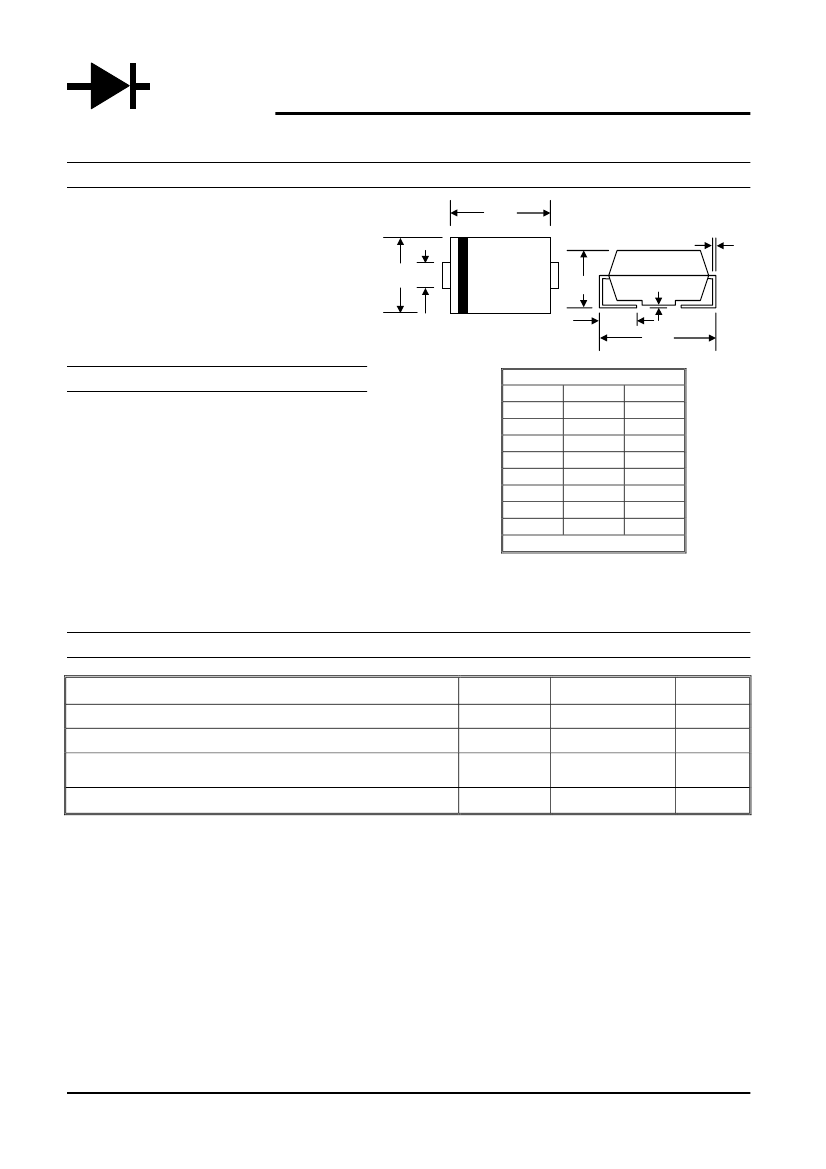

W TE
PO WE R SEM IC O ND U C TO RS
3.0SMCJ SERIES
3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
Features
!
!
!
!
!
!
!
Glass Passivated Die Construction
3000W Peak Pulse Power Dissipation
5.0V 鈥?170V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Case Material has UL Flammability
Classification Rating 94V-O
B
D
A
F
C
H
G
E
Mechanical Data
!
!
!
!
Case: JEDEC DO-214AB Low Profile Molded Plastic
Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026
Polarity: Cathode Band or Cathode Notch
Marking:
Unidirectional 鈥?Device Code and Cathode Band
Bidirectional 鈥?Device Code Only
Weight: 0.21 grams (approx.)
!
SMC/DO-214AB
Dim
Min
Max
A
5.59
6.22
B
6.60
7.11
C
2.92
3.07
D
0.152
0.305
E
7.75
8.13
F
2.00
2.62
G
0.051
0.203
H
0.76
1.27
All Dimensions in mm
鈥淐鈥?Suffix Designates Bi-directional Devices
鈥淎鈥?Suffix Designates 5% Tolerance Devices
No Suffix Designates 10% Tolerance Devices
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Pulse Power Dissipation 10/1000碌S Waveform (Note 1, 2) Figure 3
Peak Pulse Current on 10/1000碌S Waveform (Note 1) Figure 4
Peak Forward Surge Current 8.3ms Single Half Sine-Wave
Superimposed on Rated Load (JEDEC Method) (Note 2, 3)
Operating and Storage Temperature Range
@T
A
=25擄C unless otherwise specified
Symbol
P
PPM
I
PPM
I
FSM
T
j
, T
STG
Value
3000 Minimum

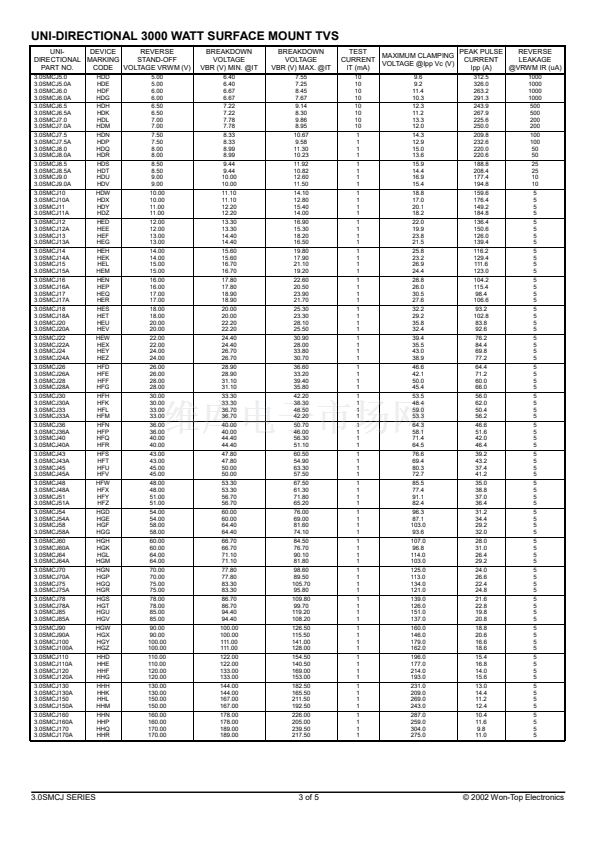

See Table 1
100
-55 to +150
Unit
W
A
A
擄C
Note: 1. Non-repetitive current pulse, per Figure 4 and derated above T
A
= 25擄C per Figure 1.
2. Mounted on 8.0mm
2
copper pads to each terminal.
3. Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minutes maximum.
3.0SMCJ SERIES
1 of 5
漏 2002 Won-Top Electronics
