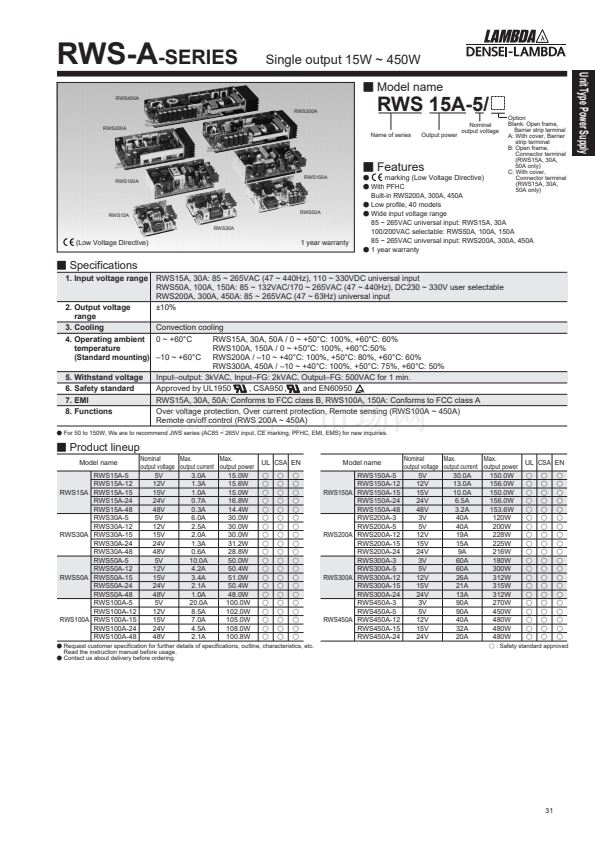

RWS-A
-SERIES
RWS450A
RWS200A
Single output 15W ~ 450W
Unit Type Power Supply
Model name
RWS300A
RWS 15A-5/
Name of series
Output power
Nominal
output voltage
Features
RWS100A
RWS150A
RWS15A
RWS30A
RWS50A
(Low Voltage Directive)
1 year warranty
marking (Low Voltage Directive)
With PFHC
Built-in RWS200A, 300A, 450A
Low profile, 40 models
Wide input voltage range
85 ~ 265VAC universal input: RWS15A, 30A
100/200VAC selectable: RWS50A, 100A, 150A
85 ~ 265VAC universal input: RWS200A, 300A, 450A
1 year warranty
Option
Blank: Open frame,
Barrier strip terminal
A: With cover, Barrier
strip terminal
B: Open frame,
Connector terminal
(RWS15A, 30A,
50A only)
C: With cover,
Connector terminal
(RWS15A, 30A,
50A only)
Specifications
1. Input voltage range
RWS15A, 30A: 85 ~ 265VAC (47 ~ 440Hz), 110 ~ 330VDC universal input
RWS50A, 100A, 150A: 85 ~ 132VAC/170 ~ 265VAC (47 ~ 440Hz), DC230 ~ 330V user selectable
RWS200A, 300A, 450A: 85 ~ 265VAC (47 ~ 63Hz) universal input
鹵10%
2. Output voltage
range
3. Cooling
Convection cooling
4. Operating ambient
0 ~ +60擄C
RWS15A, 30A, 50A / 0 ~ +50擄C: 100%, +60擄C: 60%
temperature
RWS100A, 150A / 0 ~ +50擄C: 100%, +60擄C:50%
(Standard mounting)
鈥?0 ~ +60擄C RWS200A / 鈥?0 ~ +40擄C: 100%, +50擄C: 80%, +60擄C: 60%
RWS300A, 450A / 鈥?0 ~ +40擄C: 100%, +50擄C: 75%, +60擄C: 50%
Input鈥搊utput: 3kVAC, Input鈥揊G: 2kVAC, Output鈥揊G: 500VAC for 1 min.
5. Withstand voltage
Approved by UL1950
, CSA950
and EN60950
6. Safety standard
RWS15A, 30A, 50A: Conforms to FCC class B, RWS100A, 150A: Conforms to FCC class A
7. EMI
Over voltage protection, Over current protection, Remote sensing (RWS100A ~ 450A)
8. Functions
Remote on/off control (RWS 200A ~ 450A)
For 50 to 150W, We are to recommend JWS series (AC85 ~ 265V input, CE marking, PFHC, EMI, EMS) for new inquiries.
Product lineup
Model name
RWS15A-5
RWS15A-12
RWS15A-15
RWS15A-24
RWS15A-48
RWS30A-5
RWS30A-12
RWS30A-15
RWS30A-24
RWS30A-48
RWS50A-5
RWS50A-12
RWS50A-15
RWS50A-24
RWS50A-48
RWS100A-5
RWS100A-12
RWS100A-15
RWS100A-24
RWS100A-48
Nominal
Max.
Max.
output voltage output current output power
15.0W
3.0A
5V
15.6W
1.3A
12V
15.0W
1.0A
15V
16.8W
0.7A
24V
14.4W
0.3A
48V
30.0W
6.0A
5V
30.0W
2.5A
12V
30.0W
2.0A
15V
31.2W
1.3A
24V
28.8W
0.6A
48V
50.0W
10.0A
5V
50.4W
4.2A
12V
51.0W
3.4A
15V
50.4W
2.1A
24V
48.0W
1.0A
48V
100.0W
20.0A
5V
102.0W
8.5A
12V
105.0W
7.0A
15V
108.0W
4.5A
24V
100.8W
2.1A
48V
UL CSA EN
Model name
RWS150A-5
RWS150A-12
RWS150A-15
RWS150A-24
RWS150A-48
RWS200A-3
RWS200A-5
RWS200A-12
RWS200A-15
RWS200A-24
RWS300A-3
RWS300A-5
RWS300A-12
RWS300A-15
RWS300A-24
RWS450A-3
RWS450A-5
RWS450A-12
RWS450A-15
RWS450A-24
Max.
Nominal
Max.
UL CSA EN
output voltage output current output power
30.0A
5V
150.0W
13.0A
12V
156.0W
10.0A
15V
150.0W
6.5A
24V
156.0W
3.2A
48V
153.6W
40A
3V
120W
40A
5V
200W
19A
12V
228W
15A
15V
225W
9A
24V
216W
60A
3V
180W
60A
5V
300W
26A
12V
312W
21A
15V
315W
24V
13A
312W
3V
90A
270W
5V
90A
450W
12V
40A
480W
15V
32A
480W
24V
20A
480W
: Safety standard approved

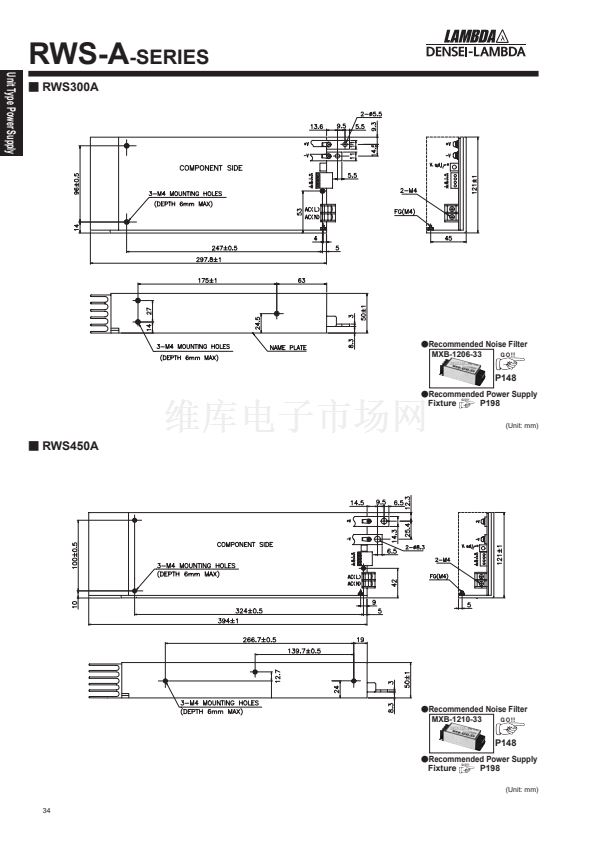

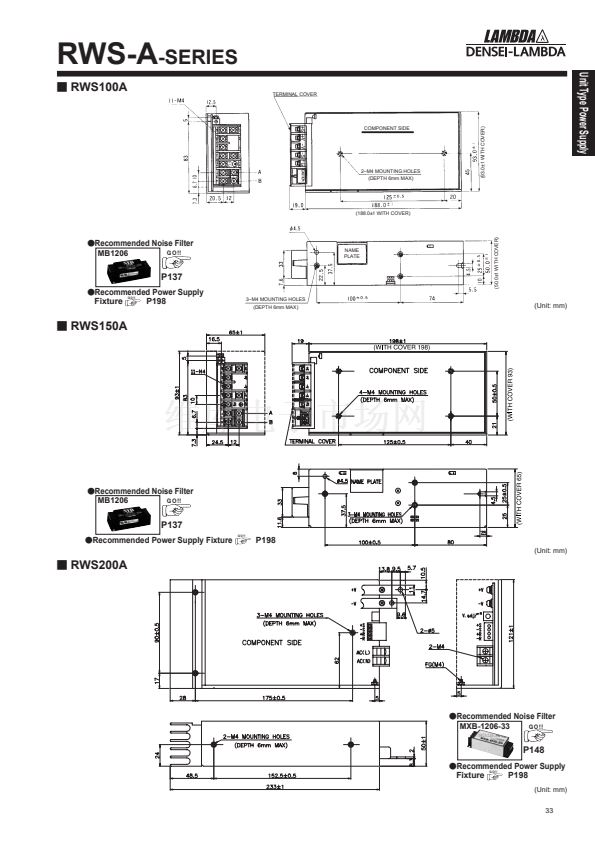

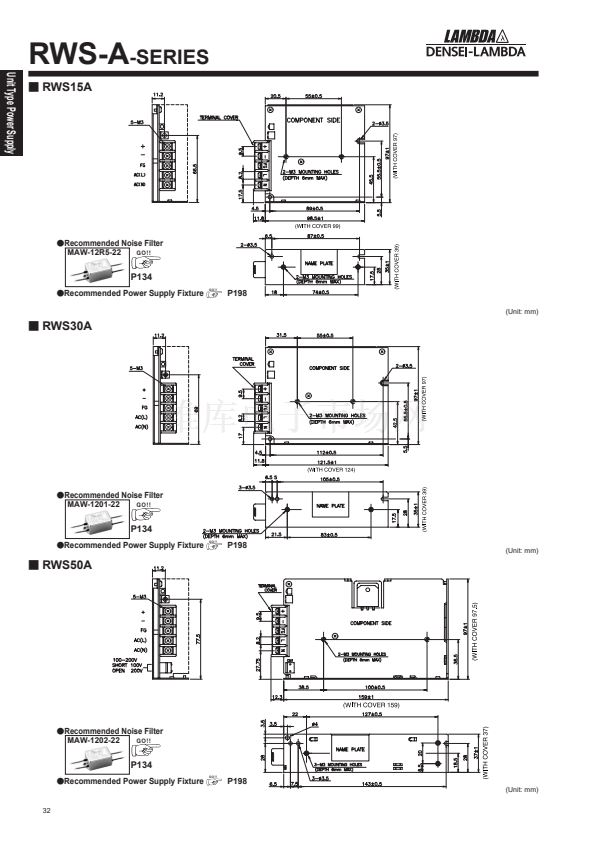

RWS15A
RWS150A
RWS30A
RWS200A
RWS50A
RWS300A
RWS100A
RWS450A
Request customer specification for further details of specifications, outline, characteristics, etc.
Read the instruction manual before usage.
Contact us about delivery before ordering.
