RUE

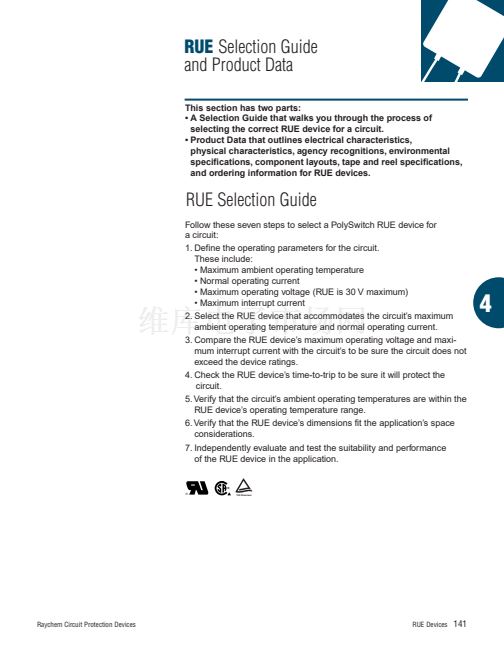

Selection Guide

and Product Data

This section has two parts:

鈥?A Selection Guide that walks you through the process of

selecting the correct RUE device for a circuit.

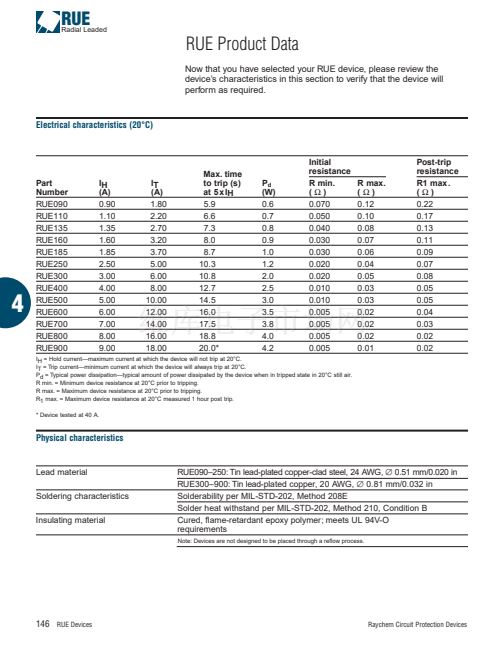

鈥?Product Data that outlines electrical characteristics,

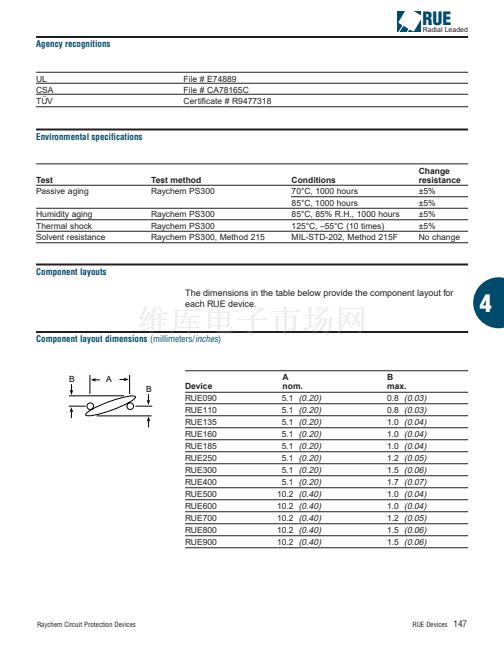

physical characteristics, agency recognitions, environmental

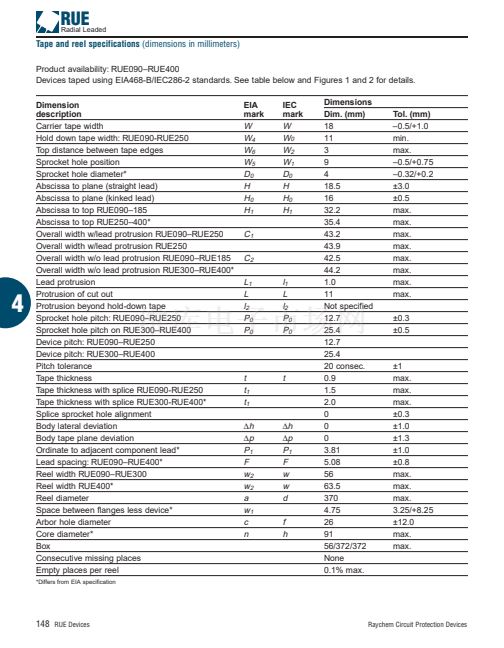

specifications, component layouts, tape and reel specifications,

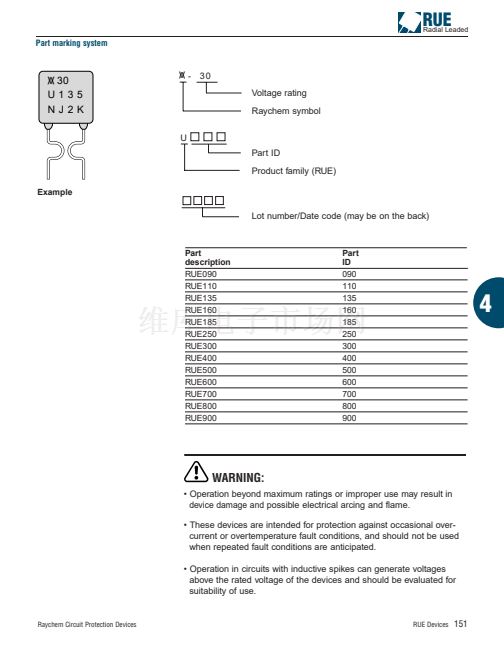

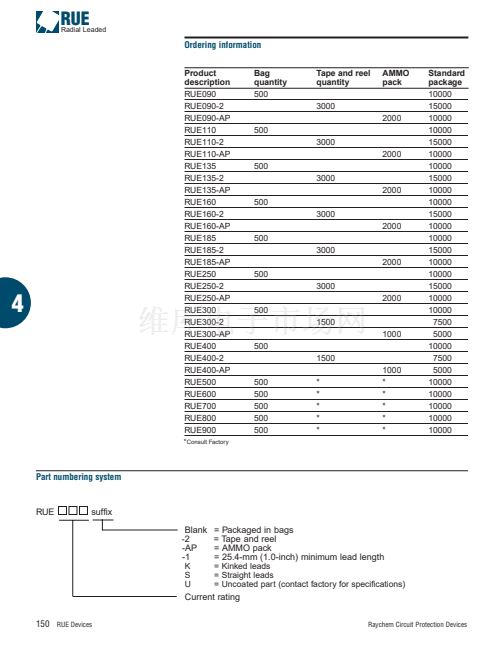

and ordering information for RUE devices.

RUE Selection Guide

Follow these seven steps to select a PolySwitch RUE device for

a circuit:

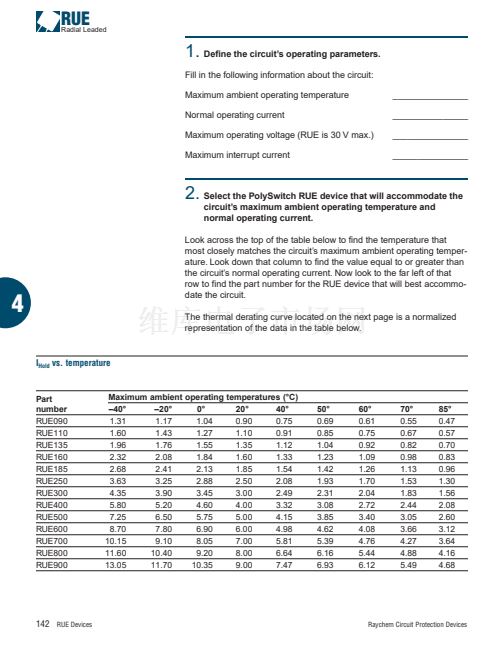

1. Define the operating parameters for the circuit.

These include:

鈥?Maximum ambient operating temperature

鈥?Normal operating current

鈥?Maximum operating voltage (RUE is 30 V maximum)

鈥?Maximum interrupt current

2. Select the RUE device that accommodates the circuit鈥檚 maximum

ambient operating temperature and normal operating current.

3. Compare the RUE device鈥檚 maximum operating voltage and maxi-

mum interrupt current with the circuit鈥檚 to be sure the circuit does not

exceed the device ratings.

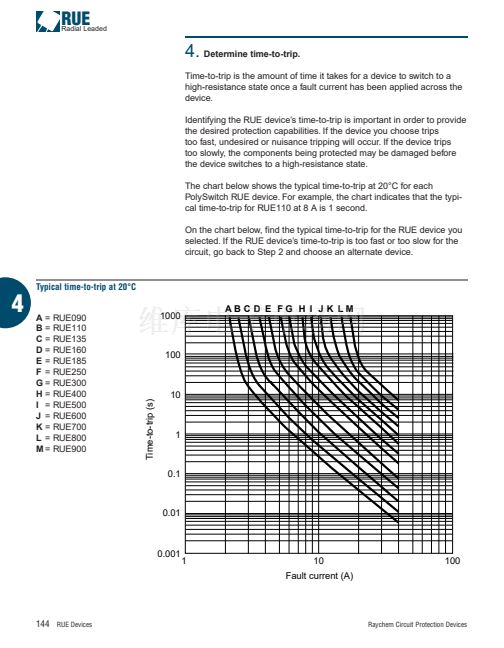

4. Check the RUE device鈥檚 time-to-trip to be sure it will protect the

circuit.

5. Verify that the circuit鈥檚 ambient operating temperatures are within the

RUE device鈥檚 operating temperature range.

6. Verify that the RUE device鈥檚 dimensions fit the application鈥檚 space

considerations.

7. Independently evaluate and test the suitability and performance

of the RUE device in the application.

4

廬

廬

TUV Rheinland

Raychem Circuit Protection Devices

RUE Devices

141

next
