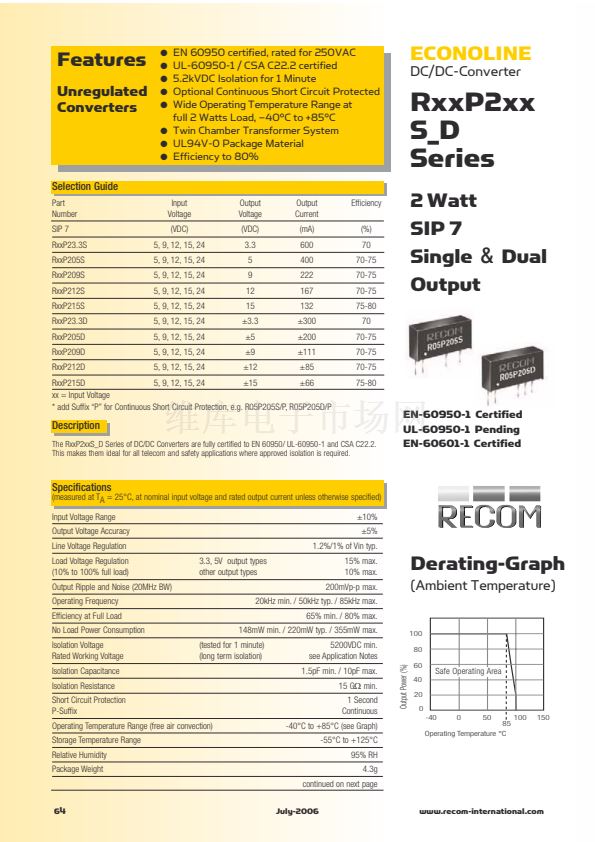

EN 60950 certified, rated for 250VAC
UL-60950-1 / CSA C22.2 certified
5.2kVDC Isolation for 1 Minute
Optional Continuous Short Circuit Protected
Wide Operating Temperature Range at
full 2 Watts Load, 鈥?0擄C to +85擄C
Twin Chamber Transformer System
UL94V-0 Package Material
Efficiency to 80%
ECONOLINE
DC/DC-Converter
RxxP2xx
S_D
Series
2 Watt
SIP 7
Single
&
Dual
Output
Selection Guide
Part
Number
SIP 7
RxxP23.3S
RxxP205S
RxxP209S
RxxP212S
RxxP215S
RxxP23.3D
RxxP205D
RxxP209D
RxxP212D
Input
Voltage
(VDC)
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
Output
Voltage
(VDC)
3.3
5
9
12
15
鹵3.3
鹵5
鹵9
鹵12
Output
Current
(mA)
600
400
222
167
132
鹵300
鹵200
鹵111
鹵85
Efficiency
(%)
70
70-75
70-75
70-75
75-80
70
70-75
70-75
70-75
75-80
RxxP215D
5, 9, 12, 15, 24
鹵15
鹵66
xx = Input Voltage
* add Suffix 鈥淧鈥?for Continuous Short Circuit Protection, e.g. R05P205S/P, R05P205D/P
Description
The RxxP2xxS_D Series of DC/DC Converters are fully certified to EN 60950/ UL-60950-1 and CSA C22.2.
This makes them ideal for all telecom and safety applications where approved isolation is required.
EN-60950-1 Certified
UL-60950-1 Pending
EN-60601-1 Certified
Specifications
(measured at TA = 25擄C, at nominal input voltage and rated output current unless otherwise specified)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz BW)
Operating Frequency
Efficiency at Full Load
No Load Power Consumption
Isolation Voltage
Rated Working Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
Package Weight
(tested for 1 minute)
(long term isolation)
3.3, 5V output types
other output types
鹵10%
鹵5%
1.2%/1% of Vin typ.
15% max.
10% max.
200mVp-p max.
20kHz min. / 50kHz typ. / 85kHz max.
65% min. / 80% max.
148mW min. / 220mW typ. / 355mW max.
5200VDC min.
see Application Notes
Output Power (%)
100
80
60
40
20
0
-40
0
50
100
150
Derating-Graph
(Ambient Temperature)
1.5pF min. / 10pF max.
15 G鈩?min.
1 Second
Continuous
-40擄C to +85擄C (see Graph)
-55擄C to +125擄C
95% RH
4.3g
continued on next page
Safe Operating Area
85
Operating Temperature 擄C
64
