SURFACE MOUNT LED LAMP
STANDARD BRIGHT PLCC-2
QTLP670C
QTLP670C-2
HER
QTLP670C-7
AlGaAs Red
QTLP670C-3
Yellow
QTLP670C-B
Blue
QTLP670C-4
Green
QTLP670C-W
White
PACKAGE DIMENSIONS
0.130 (3.3)
0.114 (2.9)
脴0.094 [脴2.4]
0.118 (3.0)
0.102 (2.6)
0.091 (2.3)
0.083 (2.1)
TOP
POLARITY MARK
0.024 (0.6)
0.016 (0.4)
0.083 (2.1)
0.067 (1.7)
0.146 (3.7)
0.130 (3.3)
0.006 (0.15)
SIDE
0.032 (0.8)
BOTTOM
_
_
POLARITY
for -2, -3, -4, -9, -B and W
for -7
APPLICATIONS
鈥?Automotive interior lighting
鈥?Status indication for consumer electronics and of鏗乧e
equipment
NOTE:
Dimensions for all drawings are in inches (mm).
DESCRIPTION
These surface mount LEDs are designed with 鏗俛t top and sides for the ease of pick-and-place by automatic placement equipment.
They are compatible with convective IR and vapor phase re鏗俹w soldering. The package size and con鏗乬uration conform to EIA-535
BAAC standard speci鏗乧ation for case size 3528 tantalum capacitor. These LEDs are ideal for backlighting and optical coupling into
light pipes.
FEATURES
鈥?GaN/SIC technology for -B and -W
鈥?Wide viewing angle of 120擄
鈥?Water clear optics
鈥?Moisture-proof packaging

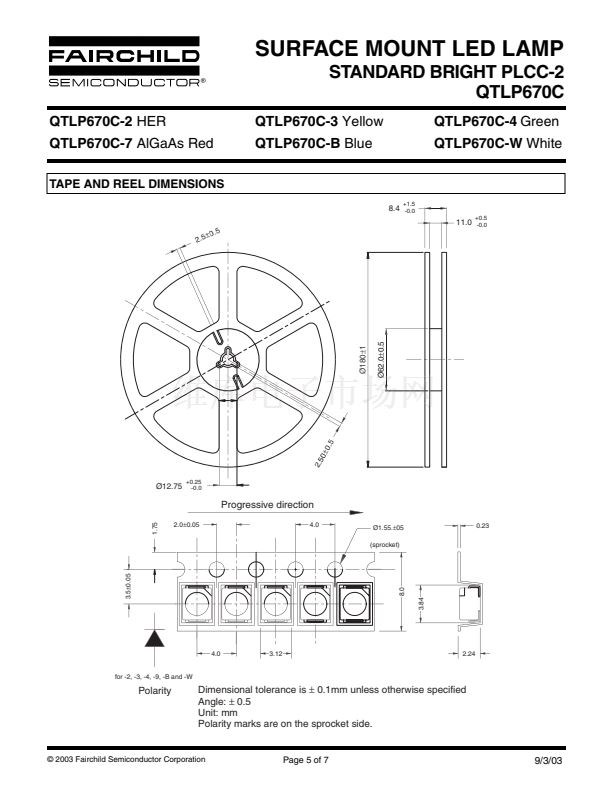

鈥?Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel
漏 2003 Fairchild Semiconductor Corporation
Page 1 of 7
9/3/03
