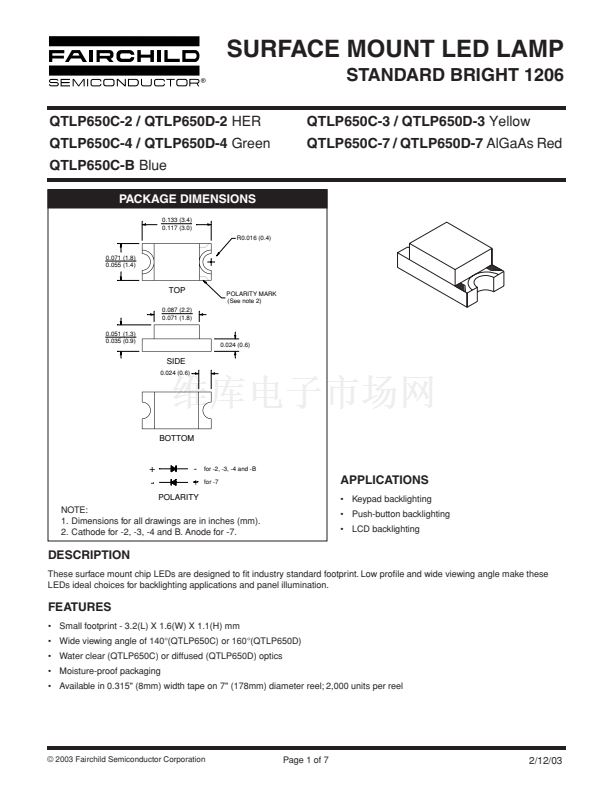

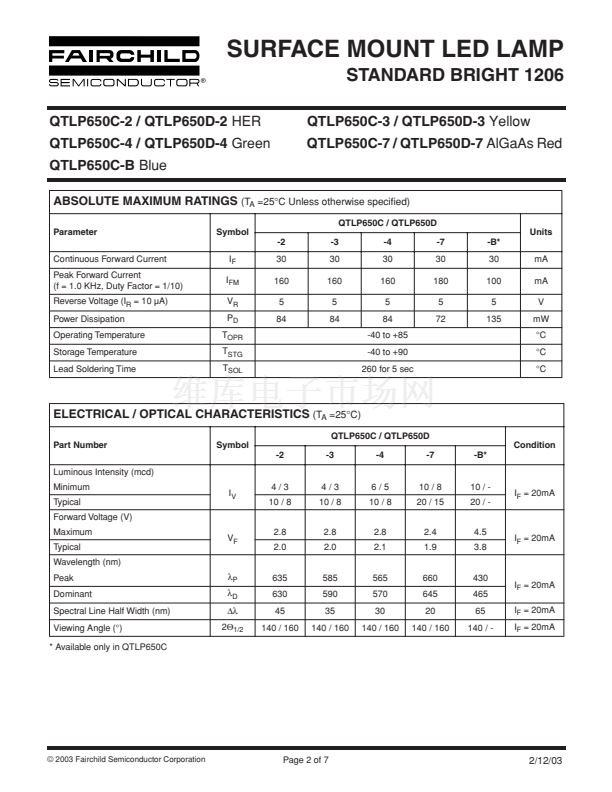

SURFACE MOUNT LED LAMP

STANDARD BRIGHT 1206

QTLP650C-2 / QTLP650D-2

HER

QTLP650C-4 / QTLP650D-4

Green

QTLP650C-B

Blue

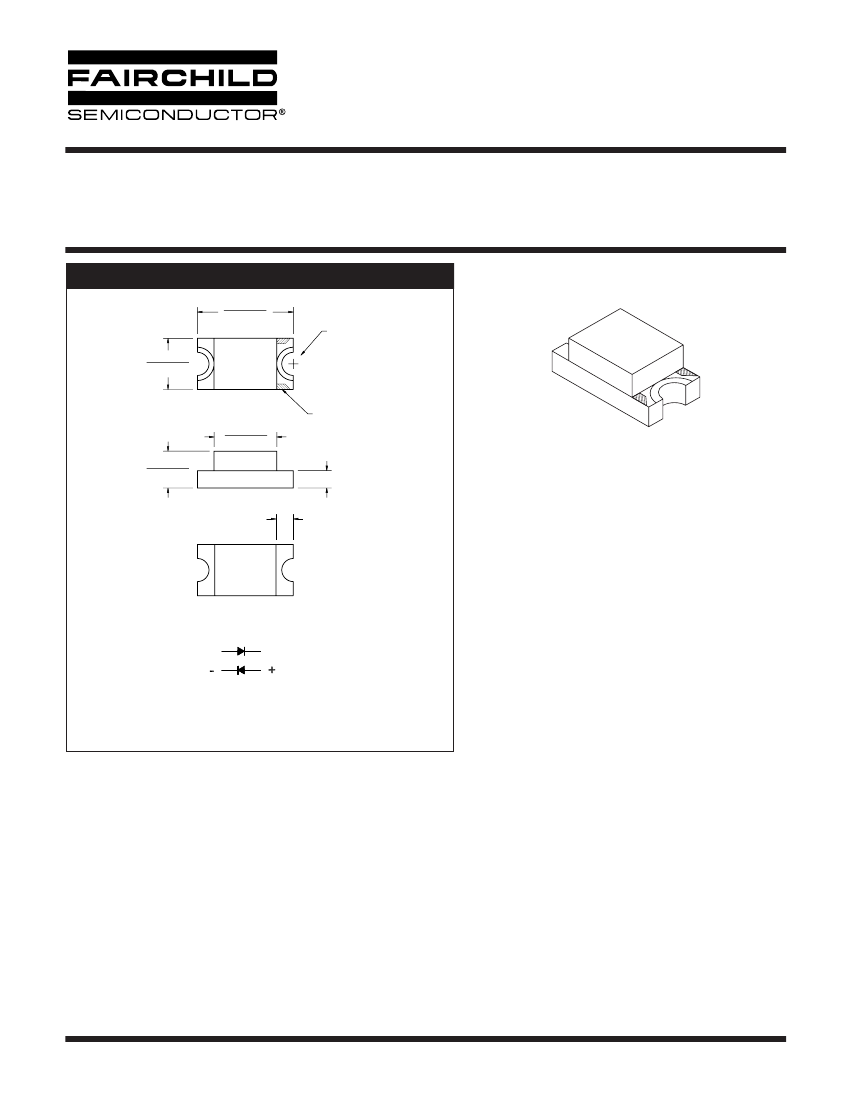

PACKAGE DIMENSIONS

0.133 (3.4)

0.117 (3.0)

R0.016 (0.4)

0.071 (1.8)

0.055 (1.4)

QTLP650C-3 / QTLP650D-3

Yellow

QTLP650C-7 / QTLP650D-7

AlGaAs Red

TOP

0.087 (2.2)

0.071 (1.8)

0.051 (1.3)

0.035 (0.9)

POLARITY MARK

(See note 2)

0.024 (0.6)

SIDE

0.024 (0.6)

BOTTOM

+

-

POLARITY

for -2, -3, -4 and -B

for -7

APPLICATIONS

鈥?Keypad backlighting

鈥?Push-button backlighting

鈥?LCD backlighting

NOTE:

1. Dimensions for all drawings are in inches (mm).

2. Cathode for -2, -3, -4 and B. Anode for -7.

DESCRIPTION

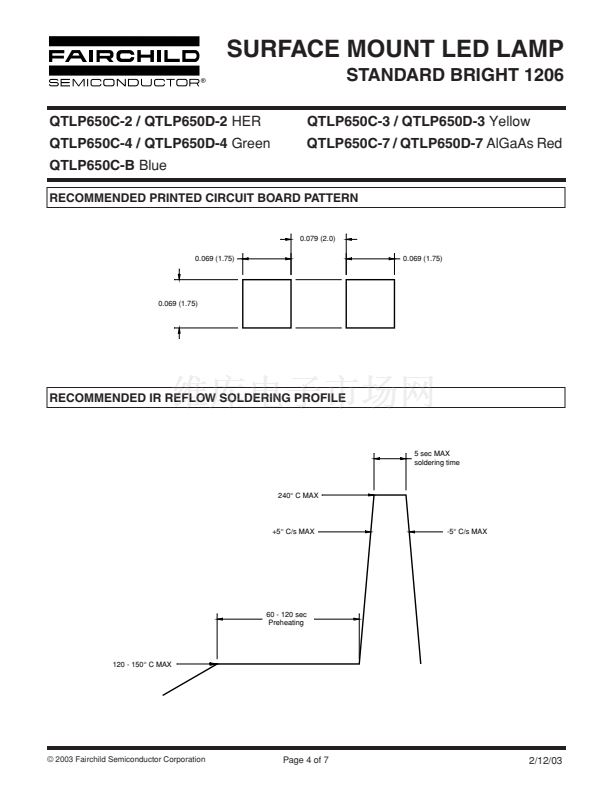

These surface mount chip LEDs are designed to 鏗乼 industry standard footprint. Low pro鏗乴e and wide viewing angle make these

LEDs ideal choices for backlighting applications and panel illumination.

FEATURES

鈥?Small footprint - 3.2(L) X 1.6(W) X 1.1(H) mm

鈥?Wide viewing angle of 140擄(QTLP650C) or 160擄(QTLP650D)

鈥?Water clear (QTLP650C) or diffused (QTLP650D) optics

鈥?Moisture-proof packaging

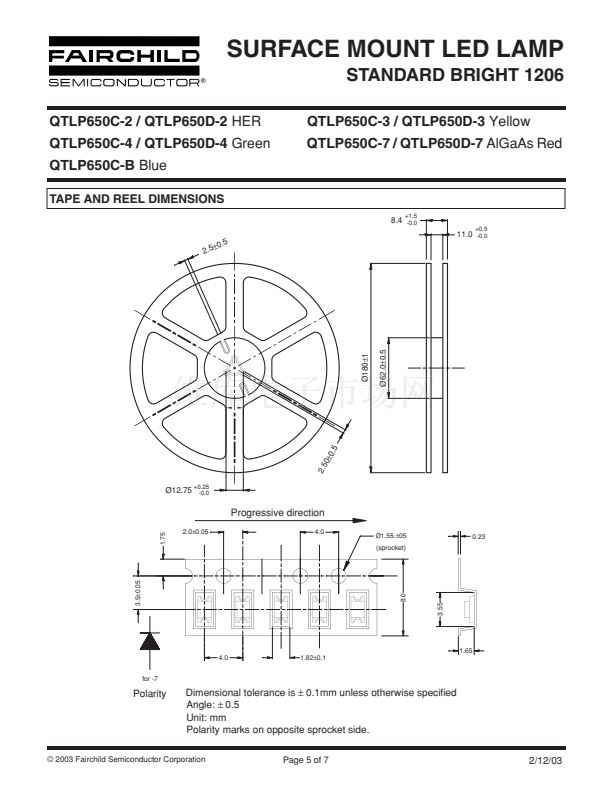

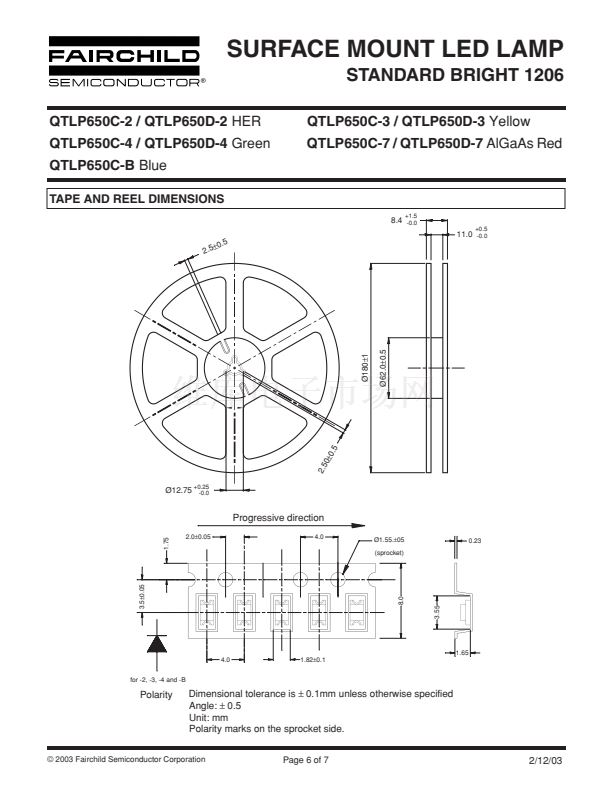

鈥?Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel

漏 2003 Fairchild Semiconductor Corporation

Page 1 of 7

2/12/03
