QTLP630C-B Datasheet

  • QTLP630C-B

  • SURFACE MOUNT LED LAMP STANDARD BRIGHT 0805

  • 113.65KB

  • 7頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

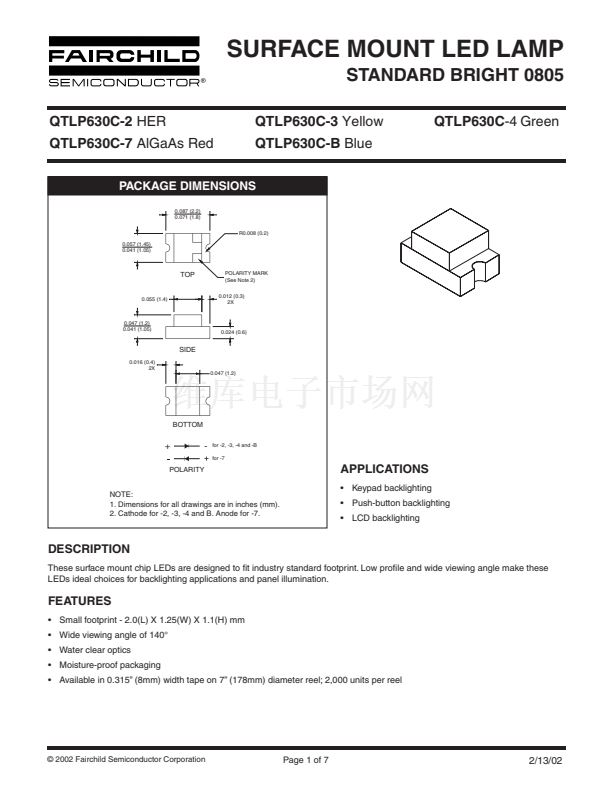

SURFACE MOUNT LED LAMP
STANDARD BRIGHT 0805
QTLP630C-2
HER
QTLP630C-7
AlGaAs Red
QTLP630C-3
Yellow
QTLP630C-B
Blue
QTLP630C
-4 Green
PACKAGE DIMENSIONS
0.087 (2.2)
0.071 (1.8)
R0.008 (0.2)
0.057 (1.45)
0.041 (1.05)
TOP
POLARITY MARK
(See Note 2)
0.012 (0.3)
2X
0.055 (1.4)
0.047 (1.2)
0.041 (1.05)
0.024 (0.6)
SIDE
0.016 (0.4)
2X
0.047 (1.2)
BOTTOM
+
POLARITY
-
for -2, -3, -4 and -B
for -7
APPLICATIONS
鈥?Keypad backlighting
鈥?Push-button backlighting
鈥?LCD backlighting
NOTE:
1. Dimensions for all drawings are in inches (mm).
2. Cathode for -2, -3, -4 and B. Anode for -7.
DESCRIPTION
These surface mount chip LEDs are designed to 鏗乼 industry standard footprint. Low pro鏗乴e and wide viewing angle make these
LEDs ideal choices for backlighting applications and panel illumination.
FEATURES
鈥?Small footprint - 2.0(L) X 1.25(W) X 1.1(H) mm
鈥?Wide viewing angle of 140擄
鈥?Water clear optics
鈥?Moisture-proof packaging

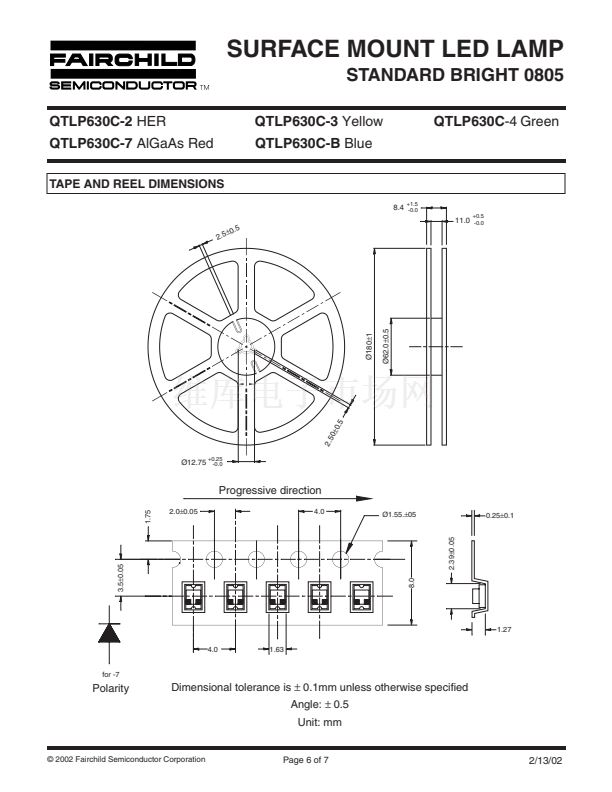

鈥?Available in 0.315鈥?(8mm) width tape on 7鈥?(178mm) diameter reel; 2,000 units per reel
漏 2002 Fairchild Semiconductor Corporation
Page 1 of 7
2/13/02
