QTLP610C-8 Datasheet

  • QTLP610C-8

  • SURFACE MOUNT LED LAMP Right Angle - (Side Looker)

  • 5頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

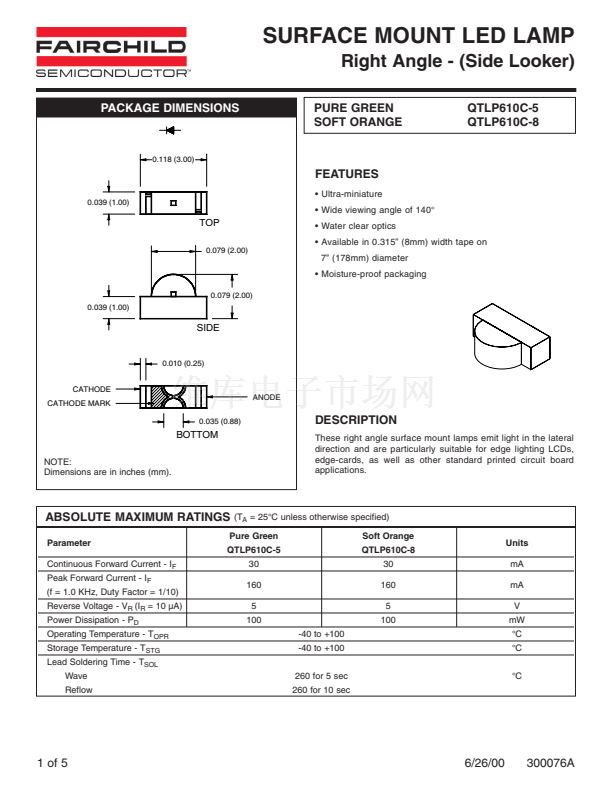

SURFACE MOUNT LED LAMP
Right Angle - (Side Looker)
PACKAGE DIMENSIONS
PURE GREEN
SOFT ORANGE
QTLP610C-5
QTLP610C-8
0.118 (3.00)
FEATURES
鈥?Ultra-miniature
0.039 (1.00)
鈥?Wide viewing angle of 140擄
TOP
0.079 (2.00)
鈥?Water clear optics
鈥?Available in 0.315鈥?(8mm) width tape on
7鈥?(178mm) diameter
鈥?Moisture-proof packaging
0.079 (2.00)
0.039 (1.00)
SIDE
0.010 (0.25)
CATHODE
CATHODE MARK
0.035 (0.88)
ANODE
DESCRIPTION
These right angle surface mount lamps emit light in the lateral
direction and are particularly suitable for edge lighting LCDs,
edge-cards, as well as other standard printed circuit board
applications.
BOTTOM
NOTE:
Dimensions are in inches (mm).
ABSOLUTE MAXIMUM RATINGS
Parameter
Continuous Forward Current - I
F
Peak Forward Current - I
F
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage - V
R
(I
R
= 10 碌A(chǔ))
Power Dissipation - P
D
Operating Temperature - T
OPR
Storage Temperature - T
STG
Lead Soldering Time - T
SOL
Wave
Reflow
(T
A
= 25擄C unless otherwise specified)
Soft Orange
QTLP610C-8
30
160
5
100
-40 to +100
-40 to +100
260 for 5 sec
260 for 10 sec
Units
mA
mA
V
mW
擄C
擄C
擄C
Pure Green
QTLP610C-5
30
160
5
100
1 of
5
6/26/00
300076A
