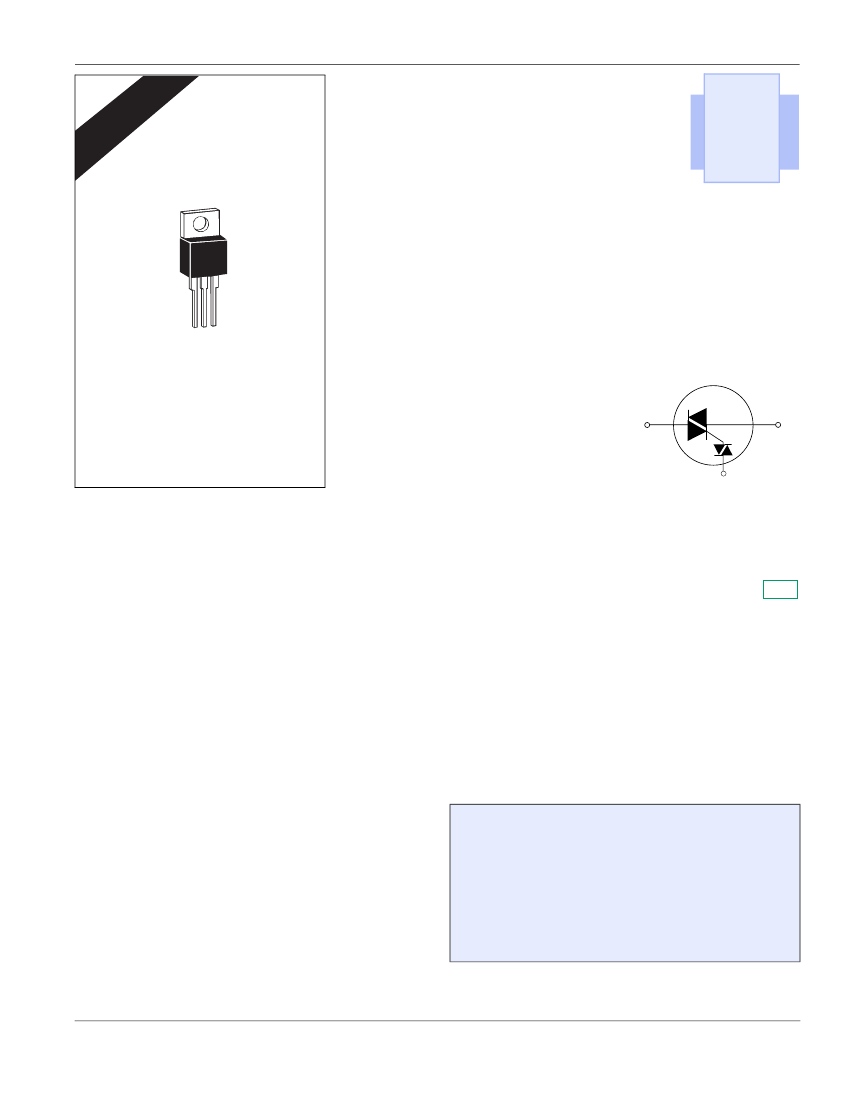

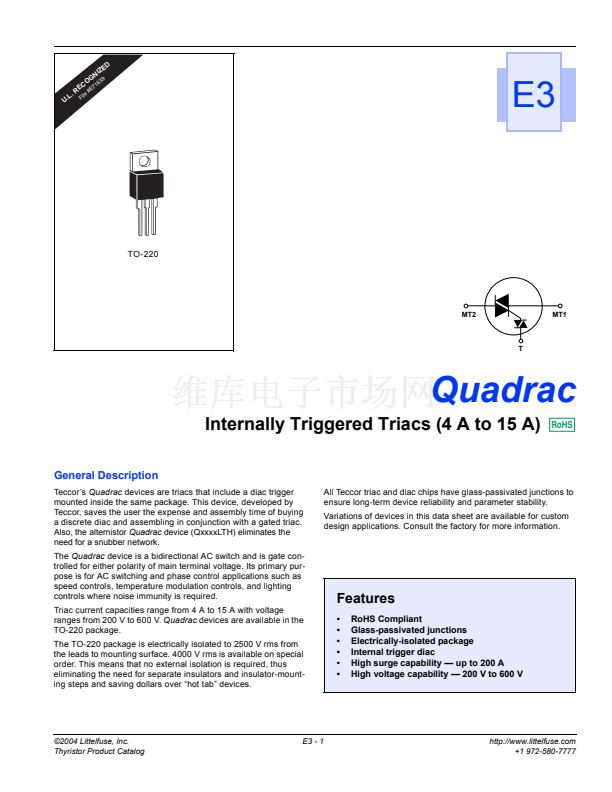

TO-220
MT2
MT1
T
Quadrac
Internally Triggered Triacs (4 A to 15 A)
E3
RoHS
General Description
Teccor鈥檚
Quadrac
devices are triacs that include a diac trigger
mounted inside the same package. This device, developed by
Teccor, saves the user the expense and assembly time of buying
a discrete diac and assembling in conjunction with a gated triac.
Also, the alternistor
Quadrac
device (QxxxxLTH) eliminates the
need for a snubber network.
The
Quadrac
device is a bidirectional AC switch and is gate con-
trolled for either polarity of main terminal voltage. Its primary pur-
pose is for AC switching and phase control applications such as
speed controls, temperature modulation controls, and lighting
controls where noise immunity is required.
Triac current capacities range from 4 A to 15 A with voltage
ranges from 200 V to 600 V.
Quadrac
devices are available in the
TO-220 package.
The TO-220 package is electrically isolated to 2500 V rms from
the leads to mounting surface. 4000 V rms is available on special
order. This means that no external isolation is required, thus
eliminating the need for separate insulators and insulator-mount-
ing steps and saving dollars over 鈥渉ot tab鈥?devices.
All Teccor triac and diac chips have glass-passivated junctions to
ensure long-term device reliability and parameter stability.
Variations of devices in this data sheet are available for custom
design applications. Consult the factory for more information.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
RoHS Compliant
Glass-passivated junctions
Electrically-isolated package
Internal trigger diac
High surge capability 鈥?up to 200 A
High voltage capability 鈥?200 V to 600 V
漏2004 Littelfuse, Inc.
Thyristor Product Catalog
E3 - 1
http://www.littelfuse.com
+1 972-580-7777
Q4010LTH 產品屬性
500
分離式半導體產品
三端雙向可控硅開關
-
內部觸發
400V
10A
-
100A，120A
-
60mA
單一
通孔
TO-220-3 隔離片
TO-220 隔離的標片
散裝
