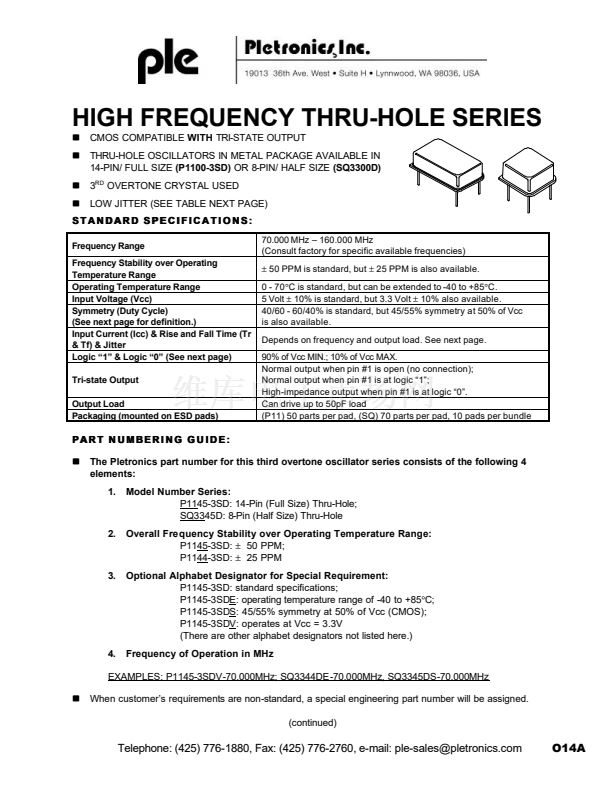

HIGH FREQUENCY THRU-HOLE SERIES
n
n
n
n
CMOS COMPATIBLE
WITH
TRI-STATE OUTPUT
THRU-HOLE OSCILLATORS IN METAL PACKAGE AVAILABLE IN
14-PIN/ FULL SIZE
(P1100-3SD)
OR 8-PIN/ HALF SIZE
(SQ3300D)
3
RD
OVERTONE CRYSTAL USED
LOW JITTER (SEE TABLE NEXT PAGE)
STANDARD SPECIFICATIONS:
Frequency Range
Frequency Stability over Operating
Temperature Range
Operating Temperature Range
Input Voltage (Vcc)
Symmetry (Duty Cycle)
(See next page for definition.)
Input Current (Icc) & Rise and Fall Time (Tr
& Tf) & Jitter
Logic 鈥?鈥?& Logic 鈥?鈥?(See next page)
Tri-state Output
Output Load
Packaging (mounted on ESD pads)
70.000 MHz 鈥?160.000 MHz
(Consult factory for specific available frequencies)
鹵
50 PPM is standard, but
鹵
25 PPM is also available.
0 - 70擄C is standard, but can be extended to -40 to +85擄C.
5 Volt
鹵
10% is standard, but 3.3 Volt
鹵
10% also available.
40/60 - 60/40% is standard, but 45/55% symmetry at 50% of Vcc
is also available.
Depends on frequency and output load. See next page.
90% of Vcc MIN.; 10% of Vcc MAX.
Normal output when pin #1 is open (no connection);
Normal output when pin #1 is at logic 鈥?鈥?
High-impedance output when pin #1 is at logic 鈥?鈥?
Can drive up to 50pF load
(P11) 50 parts per pad, (SQ) 70 parts per pad, 10 pads per bundle
PART NUMBERING GUIDE:
n
The Pletronics part number for this third overtone oscillator series consists of the following 4
elements:
1.
Model Number Series:
P1145-3SD: 14-Pin (Full Size) Thru-Hole;
SQ3345D: 8-Pin (Half Size) Thru-Hole
Overall Frequency Stability over Operating Temperature Range:
P1145-3SD:
鹵
50 PPM;
P1144-3SD:
鹵
25 PPM
Optional Alphabet Designator for Special Requirement:
P1145-3SD: standard specifications;
P1145-3SDE: operating temperature range of -40 to +85擄C;
P1145-3SDS: 45/55% symmetry at 50% of Vcc (CMOS);
P1145-3SDV: operates at Vcc = 3.3V
(There are other alphabet designators not listed here.)
Frequency of Operation in MHz
2.
3.
4.
EXAMPLES: P1145-3SDV-70.000MHz; SQ3344DE-70.000MHz, SQ3345DS-70.000MHz
n
When customer鈥檚 requirements are non-standard, a special engineering part number will be assigned.
(continued)

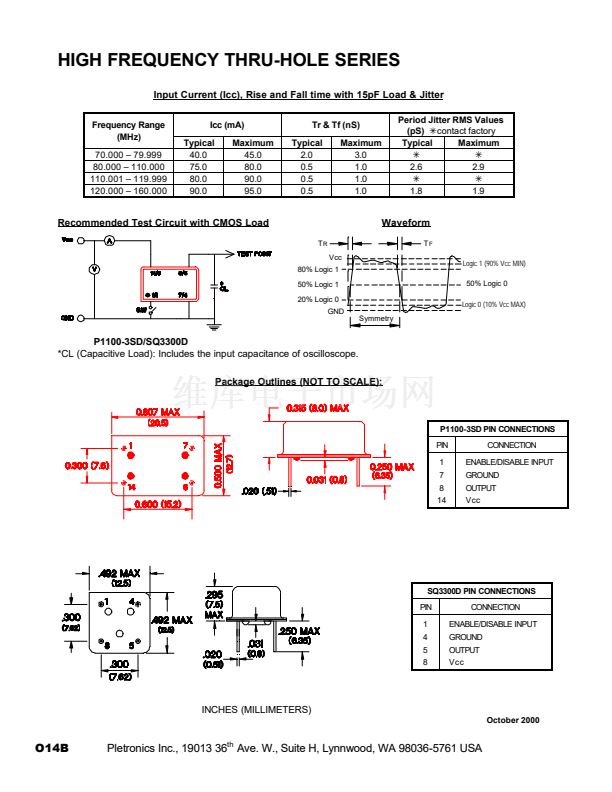

Telephone: (425) 776-1880, Fax: (425) 776-2760, e-mail: ple-sales@pletronics.com
O14A
