28 V DC; 2 AMPS @ 250 V AC (UL/CSA). See page L-50 for
additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m鈩?typ. initial
@ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
鈩?/div>
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 45潞 or 90潞, 2-3 positions. Other functions available,
consult Customer Service Center.
OPERATING & STORAGE TEMPERATURE: -30潞C to 65潞C
Materials
HOUSING: One piece, 6/6 nylon (UL94V-2), black. Finish, matte.
KEY: One nickel plated brass key.
CONTACTS AND TERMINALS: Q contact material: Copper, silver
plated. See page L-50 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant. For the
latest information regarding RoHS compliance, please go to: www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages L-49 thru L-50. For additional options not shown in catalog, consult Customer Service Center.
L

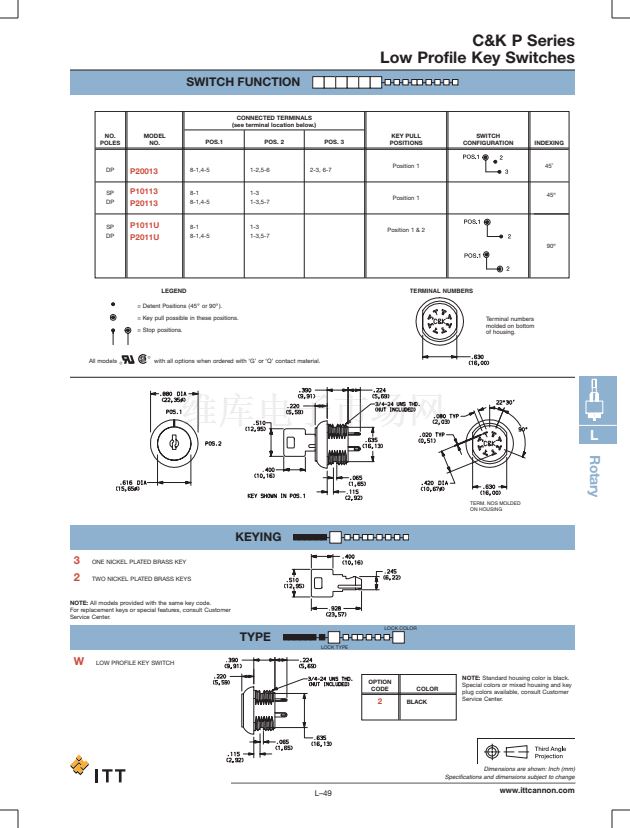

Rotary
Switch Function
P10113
SP, 90擄 Index, Keypull pos. 1
P20013
DP, 45擄 Index, Keypull pos. 1
P20113
DP, 90擄 Index, Keypull pos. 1
P1011U
SP, 90擄 Index, keypull pos. 1 & 2
P2011U
DP, 90擄 Index, keypull pos. 1 & 2
Keying
3
One nickel plated brass key
2
Two nickel plated brass keys
Type
W
Low profile key switch

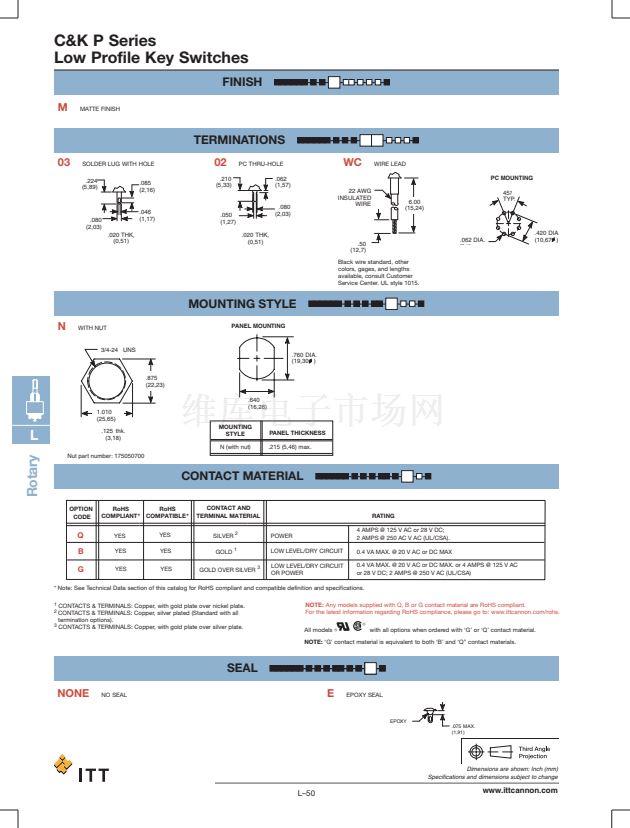

Finish
M
Matte finish
Terminations
03
Solder lug with hole
02
PC Thru-hole
WC
Wire lead
Mounting Style
N
With nut
Contact Material
Q
Silver
B
Gold
G
Gold over silver
Seal
NONE
No seal
E
Epoxy seal
Color
2
Black
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L鈥?8
www.ittcannon.com
