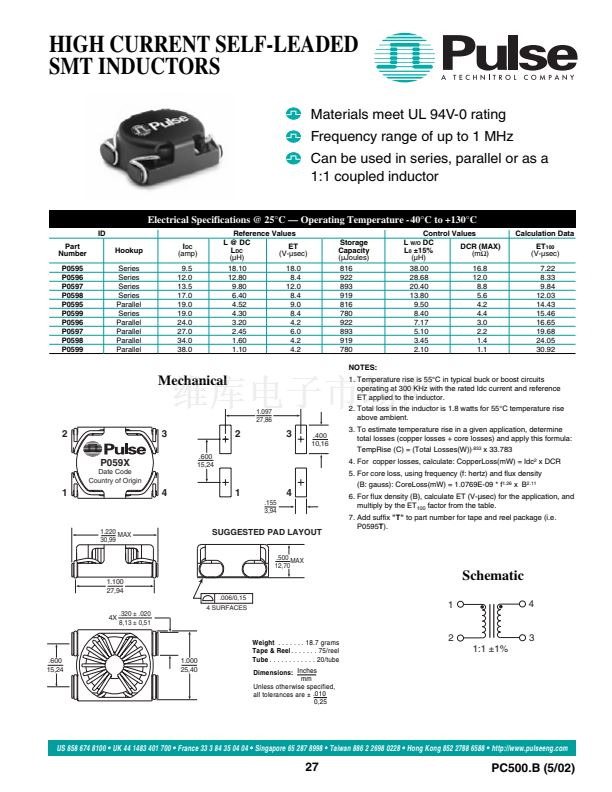

HIGH CURRENT SELF-LEADED
SMT INDUCTORS
Materials meet UL 94V-0 rating
Frequency range of up to 1 MHz
Can be used in series, parallel or as a
1:1 coupled inductor
Electrical Specifications @ 25擄C 鈥?Operating Temperature - 40擄C to +130擄C
ID
Part
Number
P0595
P0596
P0597
P0598
P0595
P0599
P0596
P0597
P0598
P0599
Hookup
Series
Series
Series
Series
Parallel
Series
Parallel
Parallel
Parallel
Parallel
I
DC
(amp)
9.5
12.0
13.5
17.0
19.0
19.0
24.0
27.0
34.0
38.0
Reference Values
L @ DC
ET
L
DC
(V-碌sec)
(碌H)
18.10
18.0
12.80
8.4
9.80
12.0
6.40
8.4
4.52
9.0
4.30
8.4
3.20
4.2
2.45
6.0
1.60
4.2
1.10
4.2
Storage
Capacity
(碌Joules)
816
922
893
919
816
780
922
893
919
780
NOTES:
Control Values
L
W/O
DC
DCR (MAX)
L
0
鹵15%
(m鈩?
(碌H)
38.00
16.8
28.68
12.0
20.40
8.8
13.80
5.6
9.50
4.2
8.40
4.4
7.17
3.0
5.10
2.2
3.45
1.4
2.10
1.1
Calculation Data
ET
100
(V-碌sec)
7.22
8.33
9.84
12.03
14.43
15.46
16.65
19.68
24.05
30.92
Mechanical
1.097
27,86
1. Temperature rise is 55擄C in typical buck or boost circuits
operating at 300 KHz with the rated Idc current and reference
ET applied to the inductor.
2. Total loss in the inductor is 1.8 watts for 55擄C temperature rise
above ambient.
2
P059X
3
.600
15,24
2
3
.400
10,16
3. To estimate temperature rise in a given application, determine
total losses (copper losses + core losses) and apply this formula:
TempRise (C) = (Total Losses(W))
.833
x 33.783
4. For copper losses, calculate: CopperLoss(mW) = Idc
2
x DCR
5. For core loss, using frequency (f: hertz) and flux density
(B: gauss): CoreLoss(mW) = 1.0769E-09 * f
1.26
x B
2.11
6. For flux density (B), calculate ET (V-
碌
sec) for the application, and
multiply by the ET
100
factor from the table.
7. Add suffix
"T"
to part number for tape and reel package (i.e.
P0595T).
Date Code
Country of Origin
1
4
1
.155
3,94
4
1.220 MAX
30,99
SUGGESTED PAD LAYOUT
.500
MAX
12,70
1.100
27,94
.320 鹵 .020
4X
8,13 鹵 0,51
Schematic
1
4
.006/0,15
4 SURFACES
.600
15,24
1.000
25,40
Weight
. . . . . . . 18.7 grams
Tape & Reel.
. . . . . . 75/reel
Tube
. . . . . . . . . . . . 20/tube
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are 鹵 .010
0,25
2
1:1 鹵1%
3
US 858 674 8100
鈥?/div>
UK 44 1483 401 700
鈥?/div>
France 33 3 84 35 04 04
鈥?/div>
Singapore 65 287 8998
鈥?/div>
Taiwan 886 2 2698 0228
鈥?/div>
Hong Kong 852 2788 6588
鈥?/div>
http://www.pulseeng.com
27
PC500.B (5/02)
