MCP111T-270E/TT Datasheet

  • MCP111T-270E/TT

  • IC, SUPERVISOR, 2.63V, LOW, SOT-23B; Threshold Voltage:2.63V...

  • 26頁

  • Microchip   Microchip

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

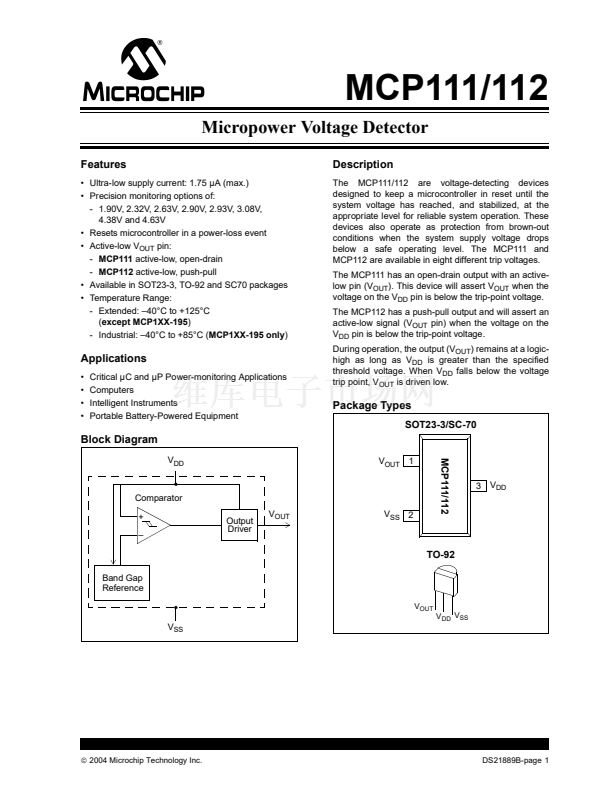

MCP111/112
Micropower Voltage Detector
Features
鈥?Ultra-low supply current: 1.75 碌A(chǔ) (max.)
鈥?Precision monitoring options of:
- 1.90V, 2.32V, 2.63V, 2.90V, 2.93V, 3.08V,
4.38V and 4.63V
鈥?Resets microcontroller in a power-loss event
鈥?Active-low V
OUT
pin:
-
MCP111
active-low, open-drain
-
MCP112
active-low, push-pull
鈥?Available in SOT23-3, TO-92 and SC70 packages
鈥?Temperature Range:
- Extended: 鈥?0擄C to +125擄C
(except
MCP1XX-195)
- Industrial: 鈥?0擄C to +85擄C (MCP1XX-195
only)
Description
The MCP111/112 are voltage-detecting devices
designed to keep a microcontroller in reset until the
system voltage has reached, and stabilized, at the
appropriate level for reliable system operation. These
devices also operate as protection from brown-out
conditions when the system supply voltage drops
below a safe operating level. The MCP111 and
MCP112 are available in eight different trip voltages.
The MCP111 has an open-drain output with an active-
low pin (V
OUT
). This device will assert V
OUT
when the
voltage on the V
DD
pin is below the trip-point voltage.
The MCP112 has a push-pull output and will assert an
active-low signal (V
OUT
pin) when the voltage on the
V
DD
pin is below the trip-point voltage.
During operation, the output (V
OUT
) remains at a logic-
high as long as V
DD
is greater than the specified
threshold voltage. When V
DD
falls below the voltage
trip point, V
OUT
is driven low.
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Critical 碌C and 碌P Power-monitoring Applications
Computers
Intelligent Instruments
Portable Battery-Powered Equipment
Package Types
SOT23-3/SC-70
Block Diagram
V
DD
V
OUT
1
MCP111/112
3
V
DD
Comparator
+
鈥?/div>
Output
Driver
V
OUT
V
SS
2
TO-92
Band Gap
Reference
V
OUT
V
DD
V
SS
V
SS
錚?/div>
2004 Microchip Technology Inc.
DS21889B-page 1

MCP111T-270E/TT 產品屬性

  • Microchip

  • 監控電路

  • 1

  • 2.63 V

  • 2.591 V

  • 2.67 V

  • Not Resettable

  • No Watchdog

  • 5.5 V

  • 1 V

  • 1.75 uA

  • + 125 C

  • SMD/SMT

  • SOT-23-3

  • Reel

  • - 40 C

  • 3000

MCP111T-270E/TT相關型號PDF文件下載
