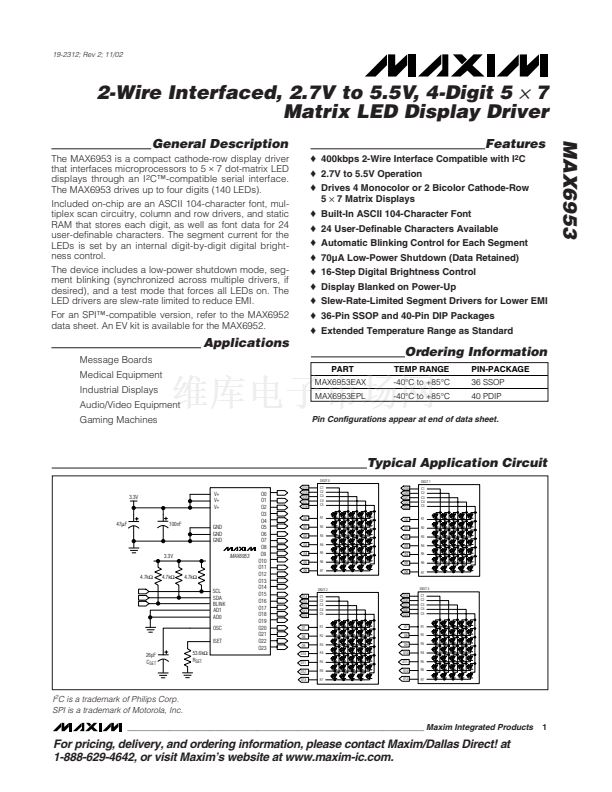

19-2312; Rev 2; 11/02
2-Wire Interfaced, 2.7V to 5.5V, 4-Digit 5
鉁?/div>
7
Matrix LED Display Driver
General Description
The MAX6953 is a compact cathode-row display driver
that interfaces microprocessors to 5
鉁?/div>
7 dot-matrix LED
displays through an I
2
C鈩?compatible serial interface.
The MAX6953 drives up to four digits (140 LEDs).
Included on-chip are an ASCII 104-character font, mul-
tiplex scan circuitry, column and row drivers, and static
RAM that stores each digit, as well as font data for 24
user-definable characters. The segment current for the
LEDs is set by an internal digit-by-digit digital bright-
ness control.
The device includes a low-power shutdown mode, seg-
ment blinking (synchronized across multiple drivers, if
desired), and a test mode that forces all LEDs on. The
LED drivers are slew-rate limited to reduce EMI.
For an SPI鈩?compatible version, refer to the MAX6952
data sheet. An EV kit is available for the MAX6952.
o
2.7V to 5.5V Operation
o
Drives 4 Monocolor or 2 Bicolor Cathode-Row
5
鉁?/div>
7 Matrix Displays
o
Built-In ASCII 104-Character Font
o
24 User-Definable Characters Available
o
Automatic Blinking Control for Each Segment
o
70碌A(chǔ) Low-Power Shutdown (Data Retained)
o
16-Step Digital Brightness Control
o
Display Blanked on Power-Up
o
Slew-Rate-Limited Segment Drivers for Lower EMI
o
36-Pin SSOP and 40-Pin DIP Packages
o
Extended Temperature Range as Standard
Features
o
400kbps 2-Wire Interface Compatible with I
2
C
MAX6953
Applications
Message Boards
Medical Equipment
Industrial Displays
Audio/Video Equipment
Gaming Machines
PART
MAX6953EAX
MAX6953EPL
Ordering Information
TEMP RANGE
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
36 SSOP
40 PDIP
Pin Configurations appear at end of data sheet.
Typical Application Circuit
DIGIT 0
DIGIT 1
O19
O20
O21
O22
O23
O0
O1
O2
O3
O4
O5
O6
C1
C2
C3
C4
C5
3.3V
V+
V+
V+
100nF
47碌F
GND
GND
GND
3.3V
MAX6953
4.7k鈩?/div>
4.7k鈩?/div>
4.7k鈩?/div>
SCL
SDA
BLINK
AD1
AD0
OSC
ISET
O0
O1
O2
O3
O4
O5
O6
O7
O8
O9
O10
O11
O12
O13
O14
O15
O16
O17
O18
O19
O20
O21
O22
O23
O14
O15
O16
O17
O18
O0
O1
O2
O3
O4
O5
O6
C1
C2
C3
C4
C5
R1
R2
R3
R4
R5
R6
R7
R1
R2
R3
R4
R5
R6
R7
DIGIT 2
O14
O15
O16
O17
O18
O7
O8
O9
O10
O11
O12
O13
C1
C2
C3
C4
C5
O19
O20
O21
O22
O23
O7
O8
O9
O10
O11
O12
O13
DIGIT 3
C1
C2
C3
C4
C5
R1
R2
R3
R4
R5
R6
R7
R1
R2
R3
R4
R5
R6
R7
26pF
C
SET
53.6k鈩?/div>
R
SET
I
2
C is a trademark of Philips Corp.
SPI is a trademark of Motorola, Inc.
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.
