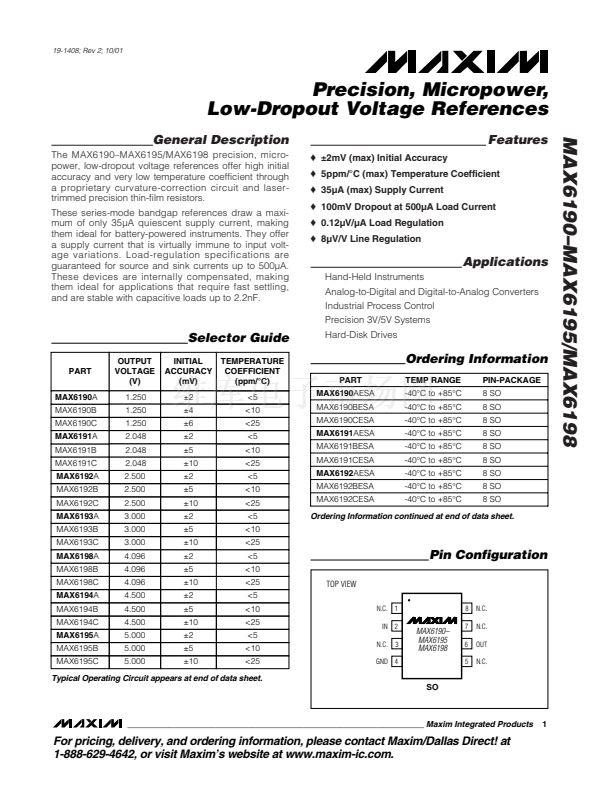

19-1408; Rev 2; 10/01
Precision, Micropower,
Low-Dropout Voltage References
General Description
The MAX6190鈥揗AX6195/MAX6198 precision, micro-
power, low-dropout voltage references offer high initial
accuracy and very low temperature coefficient through
a proprietary curvature-correction circuit and laser-
trimmed precision thin-film resistors.
These series-mode bandgap references draw a maxi-
mum of only 35碌A(chǔ) quiescent supply current, making
them ideal for battery-powered instruments. They offer
a supply current that is virtually immune to input volt-
age variations. Load-regulation specifications are
guaranteed for source and sink currents up to 500碌A(chǔ).
These devices are internally compensated, making
them ideal for applications that require fast settling,
and are stable with capacitive loads up to 2.2nF.
o
鹵2mV (max) Initial Accuracy
o
5ppm/擄C (max) Temperature Coefficient
o
35碌A(chǔ) (max) Supply Current
o
100mV Dropout at 500碌A(chǔ) Load Current
o
0.12碌V/碌A(chǔ) Load Regulation
o
8碌V/V Line Regulation
Features
MAX6190鈥揗AX6195/MAX6198
Applications
Hand-Held Instruments
Analog-to-Digital and Digital-to-Analog Converters
Industrial Process Control
Precision 3V/5V Systems
Hard-Disk Drives
Selector Guide
PART
MAX6190A
MAX6190B
MAX6190C
MAX6191A
MAX6191B
MAX6191C
MAX6192A
MAX6192B
MAX6192C
MAX6193A
MAX6193B
MAX6193C
MAX6198A
MAX6198B
MAX6198C
MAX6194A
MAX6194B
MAX6194C
MAX6195A
MAX6195B
MAX6195C
OUTPUT
VOLTAGE
(V)
1.250
1.250
1.250
2.048
2.048
2.048
2.500
2.500
2.500
3.000
3.000
3.000
4.096
4.096
4.096
4.500
4.500
4.500
5.000
5.000
5.000
INITIAL
ACCURACY
(mV)
鹵2
鹵4
鹵6
鹵2
鹵5
鹵10
鹵2
鹵5
鹵10
鹵2
鹵5
鹵10
鹵2
鹵5
鹵10
鹵2
鹵5
鹵10
鹵2
鹵5
鹵10
TEMPERATURE
COEFFICIENT
(ppm/擄C)
<5
<10
<25
<5
<10
<25
<5
<10
<25
<5
<10
<25
<5
<10
<25
<5
<10
<25
<5
<10
<25
Ordering Information
PART
MAX6190AESA
MAX6190BESA
MAX6190CESA
MAX6191AESA
MAX6191BESA
MAX6191CESA
MAX6192AESA
MAX6192BESA
MAX6192CESA
TEMP RANGE
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
-40擄C to +85擄C
PIN-PACKAGE
8 SO
8 SO
8 SO
8 SO
8 SO
8 SO
8 SO
8 SO
8 SO
Ordering Information continued at end of data sheet.
Pin Configuration
TOP VIEW
N.C.
IN
N.C.
1
2
3
8
N.C.
N.C.
OUT
N.C.
MAX6190鈥?/div>
MAX6195
MAX6198
7
6
5
GND 4
Typical Operating Circuit appears at end of data sheet.
SO
________________________________________________________________
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim鈥檚 website at www.maxim-ic.com.

MAX6195BESA+ 產品屬性

  • Lead (SnPb) Finish for COTSObsolescence Mitigation Program

  • 100

  • 集成電路 (IC)

  • PMIC - 電壓基準

  • -

  • 串聯，精度

  • 5V

  • ±5mV

  • 10ppm/°C

  • 5.2 V ~ 12.6 V

  • 1

  • -

  • 35µA

  • 500µA

  • -40°C ~ 85°C

  • 表面貼裝

  • 8-SOIC（0.154"，3.90mm 寬）

  • 8-SOIC

  • 管件
