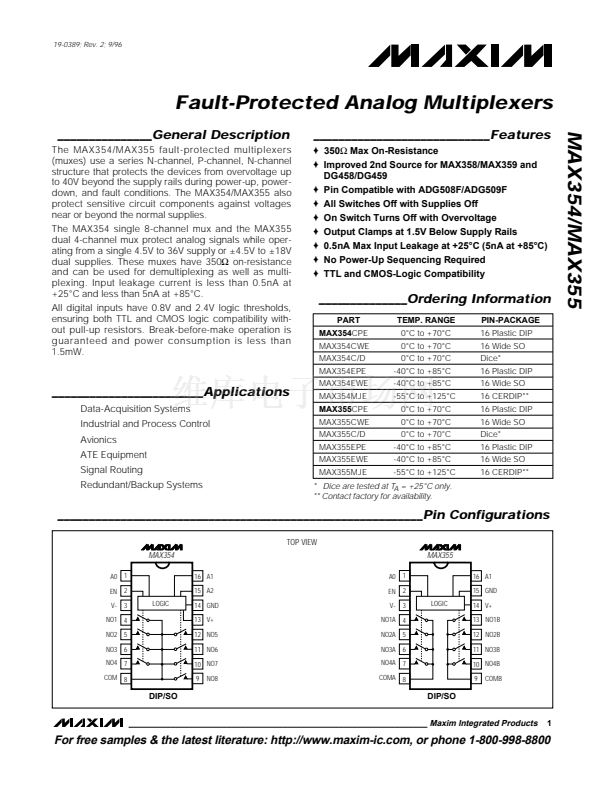

19-0389; Rev. 2; 9/96
Fault-Protected Analog Multiplexers
_______________General Description
The MAX354/MAX355 fault-protected multiplexers
(muxes) use a series N-channel, P-channel, N-channel
structure that protects the devices from overvoltage up
to 40V beyond the supply rails during power-up, power-
down, and fault conditions. The MAX354/MAX355 also
protect sensitive circuit components against voltages
near or beyond the normal supplies.

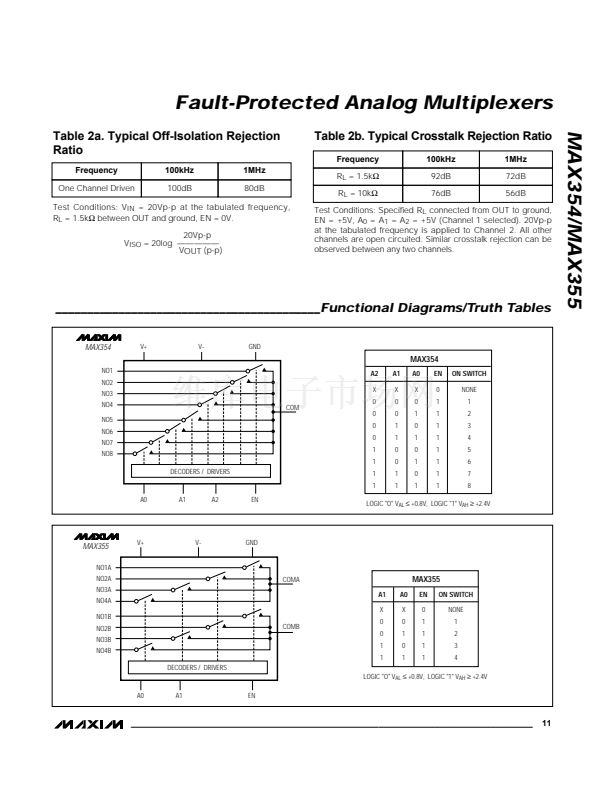

The MAX354 single 8-channel mux and the MAX355
dual 4-channel mux protect analog signals while oper-
ating from a single 4.5V to 36V supply or 鹵4.5V to 鹵18V

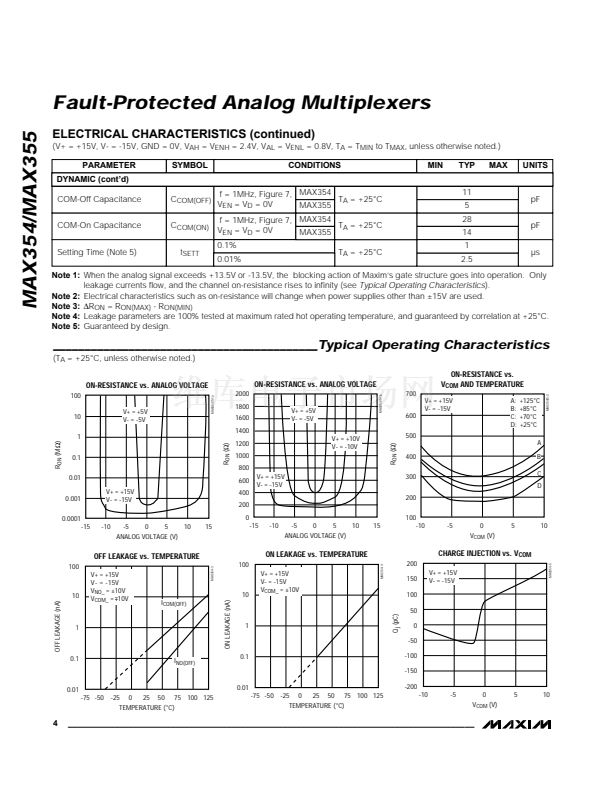

dual supplies. These muxes have 350鈩?on-resistance
and can be used for demultiplexing as well as multi-

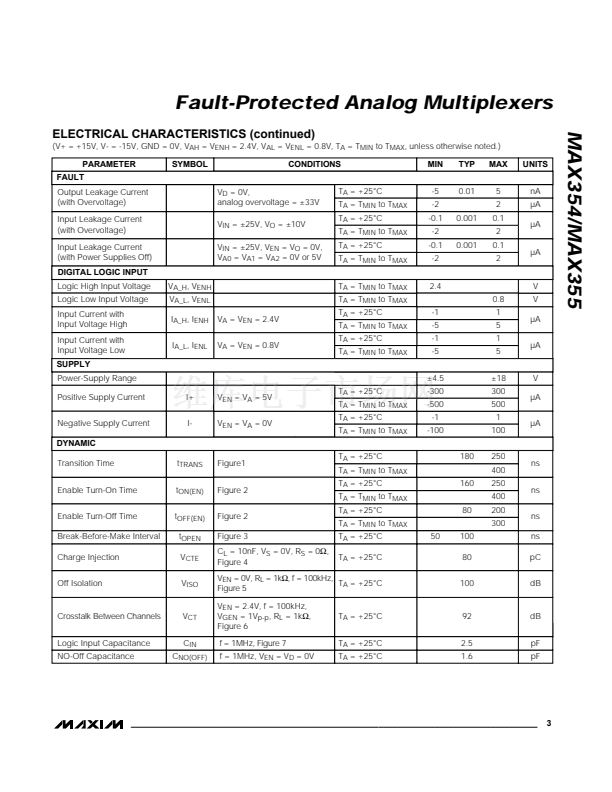

plexing. Input leakage current is less than 0.5nA at
+25擄C and less than 5nA at +85擄C.

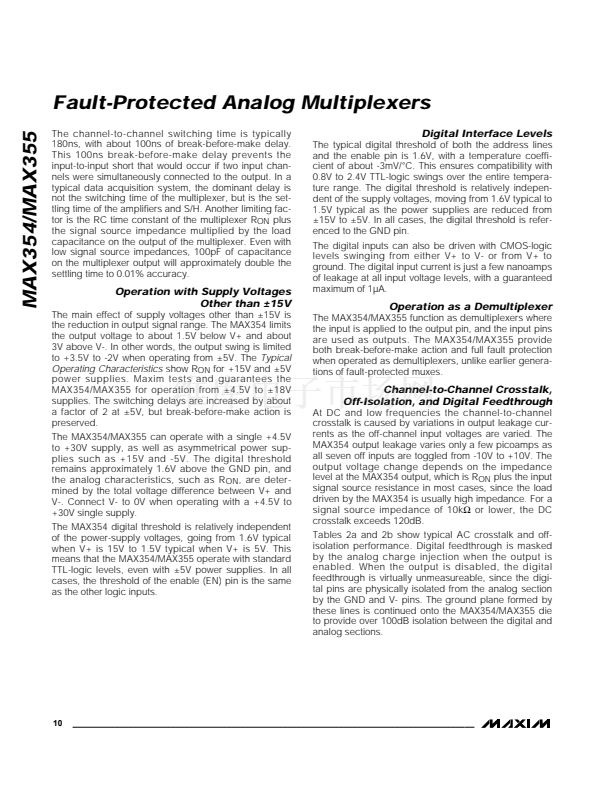

All digital inputs have 0.8V and 2.4V logic thresholds,
ensuring both TTL and CMOS logic compatibility with-

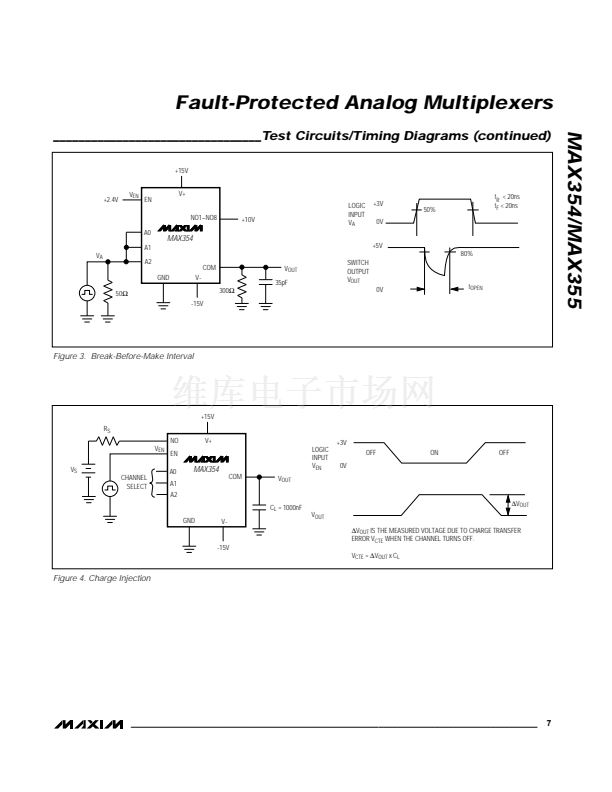

out pull-up resistors. Break-before-make operation is
guaranteed and power consumption is less than
1.5mW.
____________________________Features
o
350鈩?Max On-Resistance
o
Improved 2nd Source for MAX358/MAX359 and
DG458/DG459
o
Pin Compatible with ADG508F/ADG509F
o
All Switches Off with Supplies Off
o
On Switch Turns Off with Overvoltage
o
Output Clamps at 1.5V Below Supply Rails
o
0.5nA Max Input Leakage at +25擄C (5nA at +85擄C)
o
No Power-Up Sequencing Required
o
TTL and CMOS-Logic Compatibility
MAX354/MAX355
______________Ordering Information
PART
MAX354CPE
MAX354CWE
MAX354C/D
MAX354EPE
MAX354EWE
MAX354MJE
MAX355CPE
MAX355CWE
MAX355C/D
MAX355EPE
MAX355EWE
MAX355MJE
TEMP. RANGE
0擄C to +70擄C
0擄C to +70擄C
0擄C to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
-55擄C to +125擄C
0擄C to +70擄C
0擄C to +70擄C
0擄C to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
-55擄C to +125擄C
PIN-PACKAGE
16 Plastic DIP
16 Wide SO
Dice*
16 Plastic DIP
16 Wide SO
16 CERDIP**
16 Plastic DIP
16 Wide SO
Dice*
16 Plastic DIP
16 Wide SO
16 CERDIP**
________________________Applications
Data-Acquisition Systems
Industrial and Process Control
Avionics
ATE Equipment
Signal Routing
Redundant/Backup Systems
* Dice are tested at T
A
= +25擄C only.
** Contact factory for availability.

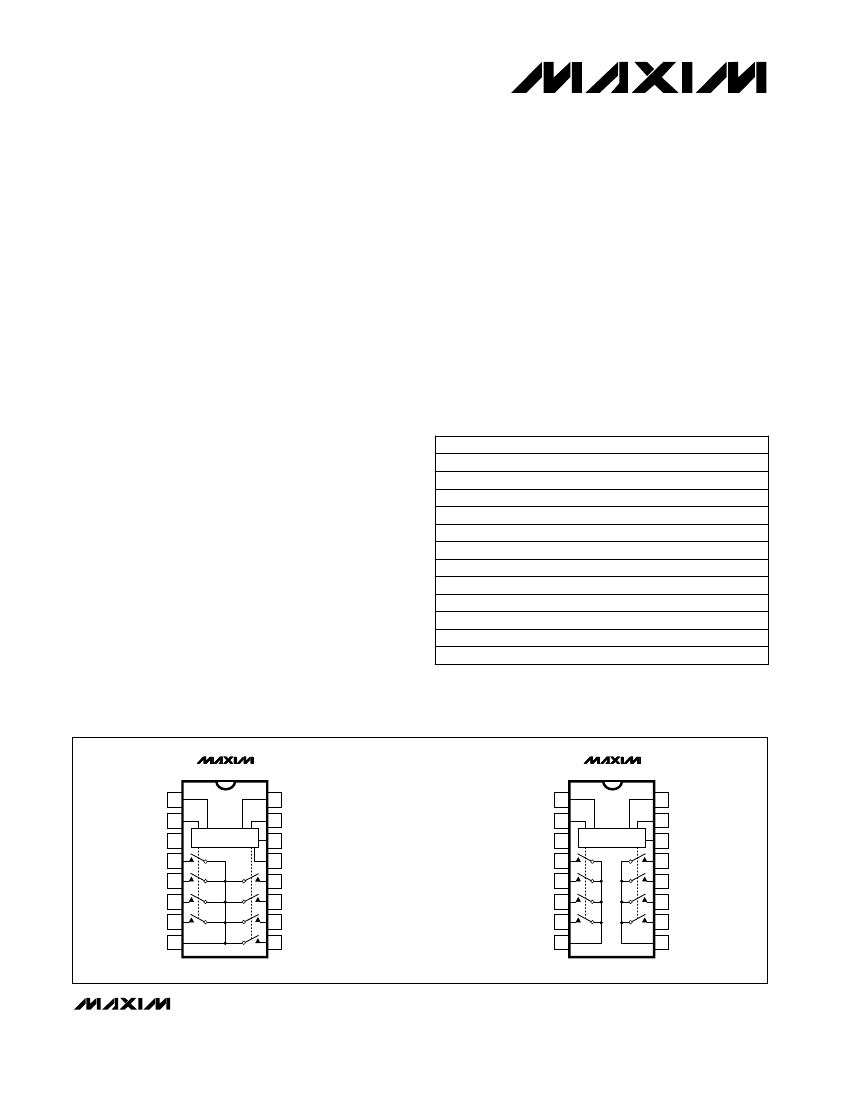

__________________________________________________________Pin Configurations
TOP VIEW
MAX354
A0 1
EN 2
V- 3
NO1 4
NO2 5
NO3 6
NO4 7
COM 8
LOGIC
16 A1
15 A2
14 GND
13 V+
12 NO5
11 NO6
10 NO7
9
NO8
A0 1
EN 2
V- 3
NO1A 4
NO2A 5
NO3A 6
NO4A 7
COMA 8
MAX355
16 A1
15 GND
LOGIC
14 V+
13 NO1B
12 NO2B
11 NO3B
10 NO4B
9
COMB
DIP/SO
DIP/SO
1
________________________________________________________________
Maxim Integrated Products
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800
