K2400S Datasheet

  • K2400S

  • silicon bilateral voltage triggered switch

  • 6頁

  • TECCOR

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DO-15X
Axial Lead
DO-214AA
Surface Mount
TO-202AB
Type 1
TO-92
Type 70
Do not use mounting tab
or center lead,
electrically connected

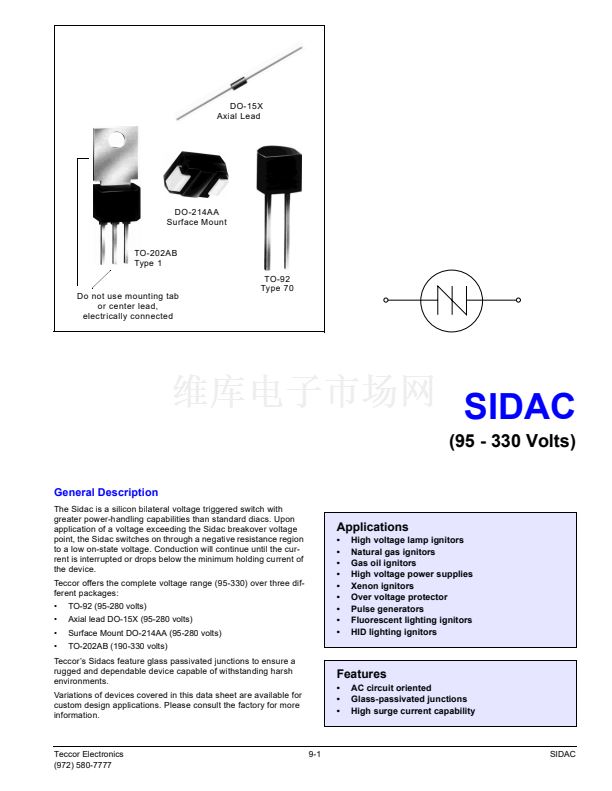

SIDAC
(95 - 330 Volts)
9
General Description
The Sidac is a silicon bilateral voltage triggered switch with
greater power-handling capabilities than standard diacs. Upon
application of a voltage exceeding the Sidac breakover voltage
point, the Sidac switches on through a negative resistance region
to a low on-state voltage. Conduction will continue until the cur-
rent is interrupted or drops below the minimum holding current of
the device.
Teccor offers the complete voltage range (95-330) over three dif-
ferent packages:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
TO-92 (95-280 volts)
Axial lead DO-15X (95-280 volts)
Surface Mount DO-214AA (95-280 volts)
TO-202AB (190-330 volts)
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
High voltage lamp ignitors
Natural gas ignitors
Gas oil ignitors
High voltage power supplies
Xenon ignitors
Over voltage protector
Pulse generators
Fluorescent lighting ignitors
HID lighting ignitors
Teccor鈥檚 Sidacs feature glass passivated junctions to ensure a
rugged and dependable device capable of withstanding harsh
environments.
Variations of devices covered in this data sheet are available for
custom design applications. Please consult the factory for more
information.
Features
鈥?/div>
鈥?/div>
鈥?/div>
AC circuit oriented
Glass-passivated junctions
High surge current capability
Teccor Electronics
(972) 580-7777
9-1
SIDAC

K2400S 產品屬性

  • Littelfuse

  • 硅對稱二端開關元件

  • 250 V

  • 10 uA

  • +/- 190 V

  • 1 A

  • 5 uA

  • 1.5 V

  • + 125 C

  • SMD/SMT

  • DO-214

  • Bulk

  • - 40 C

  • 5000
