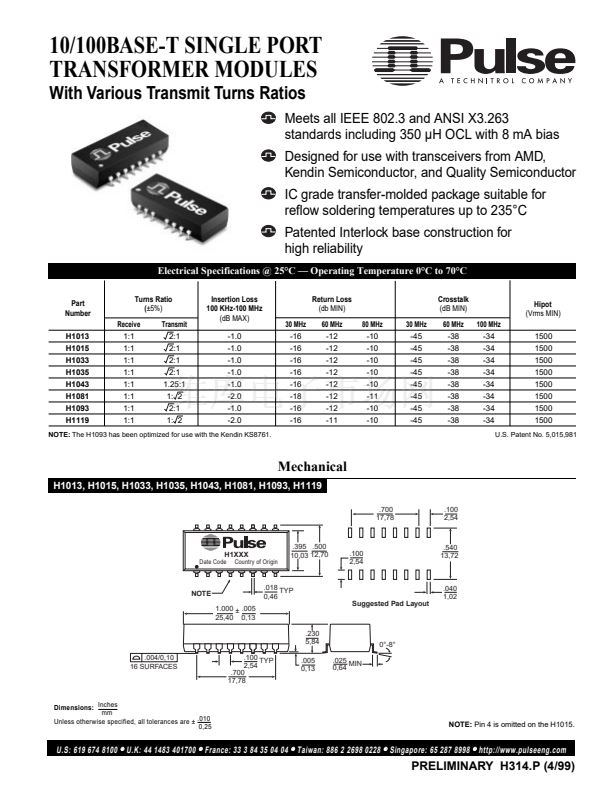

10/100BASE-T SINGLE PORT
TRANSFORMER MODULES
With Various Transmit Turns Ratios
Meets all IEEE 802.3 and ANSI X3.263
standards including 350 碌H OCL with 8 mA bias
Designed for use with transceivers from AMD,
Kendin Semiconductor, and Quality Semiconductor
IC grade transfer-molded package suitable for
reflow soldering temperatures up to 235擄C
Patented Interlock base construction for
high reliability
Electrical Specifications @ 25擄C 鈥?Operating Temperature 0擄C to 70擄C
Part
Number
H1013
H1015
H1033
H1035
H1043
H1081
H1093
H1119
Turns Ratio
(鹵5%)
Receive
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
Transmit
2:1
2:1
2:1
2:1
1.25:1
1: 2
2:1
1: 2
Insertion Loss
100 KHz-100 MHz
(dB MAX)
-1.0
-1.0
-1.0
-1.0
-1.0
-2.0
-1.0
-2.0
Return Loss
(db MIN)
30 MHz
-16
-16
-16
-16
-16
-18
-16
-16
60 MHz
-12
-12
-12
-12
-12
-12
-12
-11
80 MHz
-10
-10
-10
-10
-10
-11
-10
-10
30 MHz
-45
-45
-45
-45
-45
-45
-45
-45
Crosstalk
(dB MIN)
60 MHz
-38
-38
-38
-38
-38
-38
-38
-38
100 MHz
-34
-34
-34
-34
-34
-34
-34
-34
Hipot
(Vrms MIN)
1500
1500
1500
1500
1500
1500
1500
1500
U.S. Patent No. 5,015,981
NOTE:
The H1093 has been optimized for use with the Kendin KS8761.
Mechanical
H1013, H1015, H1033, H1035, H1043, H1081, H1093, H1119
.700
17,78
.100
2,54
H1XXX
Date Code
Country of Origin
.395 .500
10,03 12,70
.100
2,54
.540
13,72
NOTE
1.000 鹵 .005
25,40 0,13
.018 TYP
0,46
Suggested Pad Layout
.040
1,02
.230
5,84
.004/0,10
16 SURFACES
0擄-8擄
.025 MIN
0,64
.100 TYP
2,54
.700
17,78
.005
0,13
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are 鹵 .010
0,25
NOTE:
Pin 4 is omitted on the H1015.
U.S: 619 674 8100
鈥?/div>
U.K: 44 1483 401700
鈥?/div>
France: 33 3 84 35 04 04
鈥?/div>
Taiwan: 886 2 2698 0228
鈥?/div>
Singapore: 65 287 8998
鈥?/div>
http://www.pulseeng.com
PRELIMINARY H314.P (4/99)
