BZX84-C20 Datasheet

  • BZX84-C20

  • Zener Diodes

  • 10頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

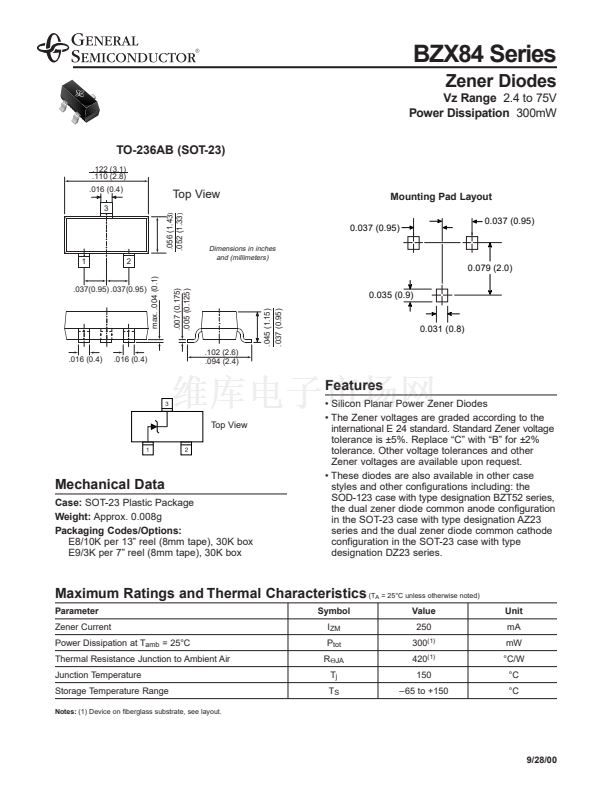

BZX84 Series
Zener Diodes
Vz Range
2.4 to 75V
Power Dissipation
300mW
TO-236AB (SOT-23)
.122 (3.1)
.110 (2.8)
.016 (0.4)
3
.056 (1.43
)
.052 (1.33
)
Top View
Mounting Pad Layout
0.037 (0.95)
0.037 (0.95)
1
2
max. .004 (0.1)
Dimensions in inches
and (millimeters)
0.079 (2.0)
.007 (0.175)
.005 (0.125)
.037(0.95) .037(0.95)
0.035 (0.9)
.045 (1.15)
.037 (0.95)
0.031 (0.8)
.016 (0.4)
.016 (0.4)
.102 (2.6)
.094 (2.4)
Features
Top View
Mechanical Data
Case:
SOT-23 Plastic Package
Weight:
Approx. 0.008g
Packaging Codes/Options:
E8/10K per 13鈥?reel (8mm tape), 30K box
E9/3K per 7鈥?reel (8mm tape), 30K box
鈥?Silicon Planar Power Zener Diodes
鈥?The Zener voltages are graded according to the
international E 24 standard. Standard Zener voltage
tolerance is 鹵5%. Replace 鈥淐鈥?with 鈥淏鈥?for 鹵2%
tolerance. Other voltage tolerances and other
Zener voltages are available upon request.
鈥?These diodes are also available in other case
styles and other configurations including: the
SOD-123 case with type designation BZT52 series,
the dual zener diode common anode configuration
in the SOT-23 case with type designation AZ23
series and the dual zener diode common cathode
configuration in the SOT-23 case with type
designation DZ23 series.
Maximum Ratings and Thermal Characteristics
(T
Parameter
Zener Current
Power Dissipation at T
amb
= 25擄C
Thermal Resistance Junction to Ambient Air
Junction Temperature
Storage Temperature Range
Notes:
(1) Device on fiberglass substrate, see layout.
A
= 25擄C unless otherwise noted)
Symbol
I
ZM
P
tot
R
螛JA
T
j
T
S
Value
250
300
(1)
420
(1)
150
鈥?5 to +150
Unit
mA
mW
擄C/W
擄C
擄C
9/28/00
