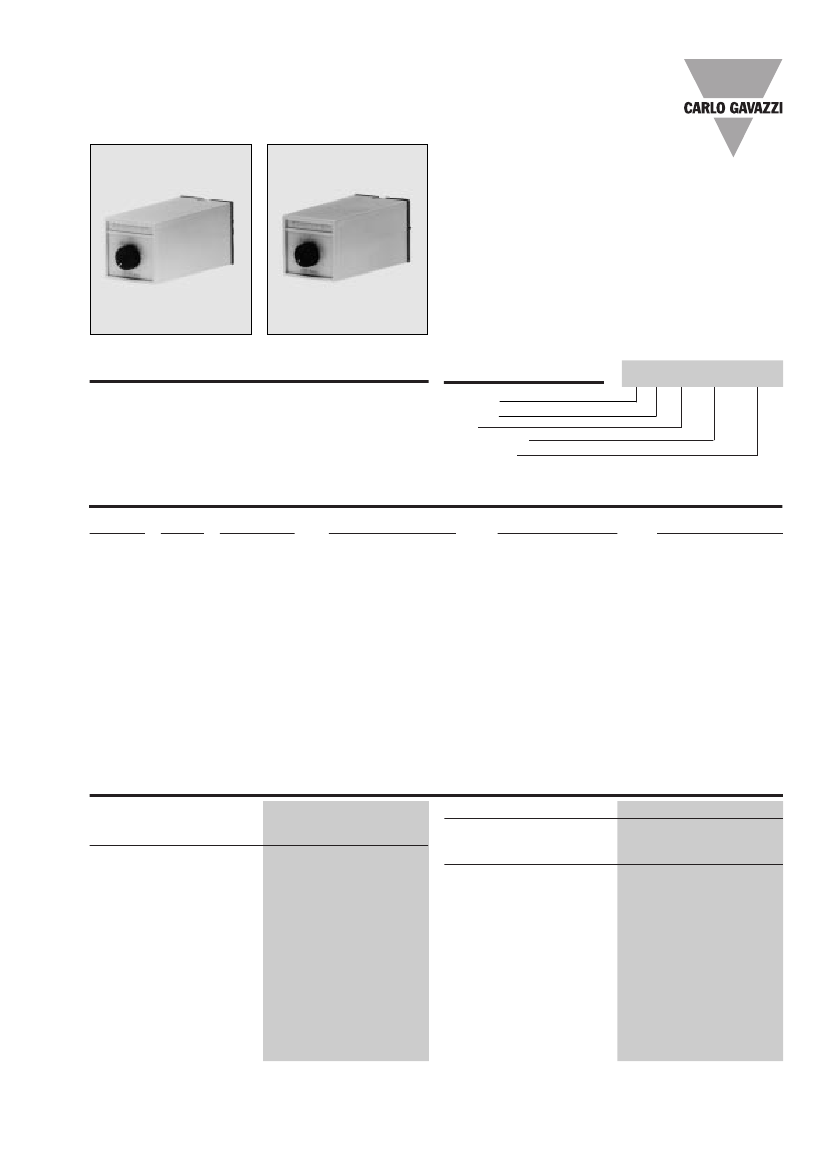

Timers
Delay on Operate
Types A 108, A 101, A 208, A 201
鈥?Time ranges: 0.15 s to 600 s
鈥?Automatic start
鈥?Knob-adjustable time within range
鈥?Oscillator-controlled time circuit
鈥?Repeatability deviation:
鈮?/div>
1%
鈥?Output: 10 A SPDT or 8 A DPDT relay
鈥?Plug-in type module
鈥?Scantimer housing
鈥?LED-indication for relay on
鈥?AC or DC power supply
Product Description
Mono-function, plug-in, de-
lay on operate miniature time
relays up to 600 s (10 min)
covering 3 individual time
ranges. These economical
relays can be used to pre-
vent several motors from
starting simultaneously due
to power supply interruptions.
Ordering Key
Function
Output
Type
Power supply
Time range
A 108 024 600
Type Selection
Plug
Circular
8 pin
Circular
11 pin
Circular
8 pin
Circular
11 pin
DPDT
Output
SPDT
Time ranges
0.15- 6 s
1.5 - 60 s
15 -600 s
0.15- 6 s
1.5 - 60 s
15 -600 s
0.15- 6 s
1.5 - 60 s
15 -600 s
0.15- 6 s
1.5 - 60 s
15 -600 s
Supply: 24 VAC/DC
A 108 024 006
A 108 024 060
A 108 024 600
A 101 024 006
A 101 024 060
A 101 024 600
A 208 024 006
A 208 024 060
A 208 024 600
A 201 024 006
A 201 024 060
A 201 024 600
Supply: 120 VAC
A 108 120 006
A 108 120 060
A 108 120 600
A 101 120 006
A 101 120 060
A 101 120 600
A 208 120 006
A 208 120 060
A 208 120 600
A 201 120 006
A 201 120 060
A 201 120 600
Supply: 220 VAC
A 108 220 006
A 108 220 060
A 108 220 600
A 101 220 006
A 101 220 060
A 101 220 600
A 208 220 006
A 208 220 060
A 208 220 600
A 201 220 006
A 201 220 060
A 201 220 600
Time Specifications
Time ranges
0.15- 6 s
1.5 - 60 s
15 - 600 s
0 to +10% on max.
min. actual time
鈮?/div>
min.
set time
Repeatability deviation
Time variation
Within rated power supply
and ambient temperature
Reset
Time and/or relay
鈮?/div>
1%
鈮?/div>
0.05%/V
鈮?/div>
0.2%/擄C
Power supply interruption
鈮?/div>
250 ms
Time range accuracy

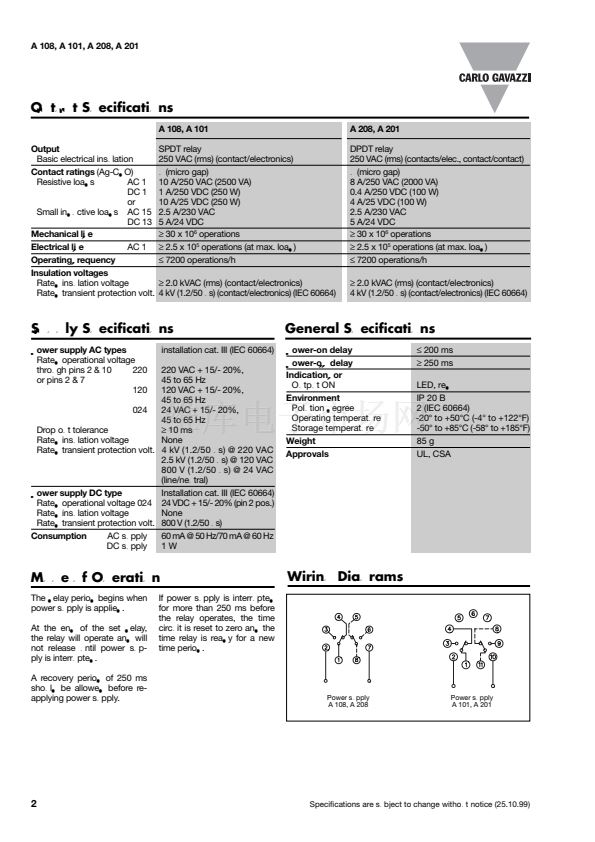

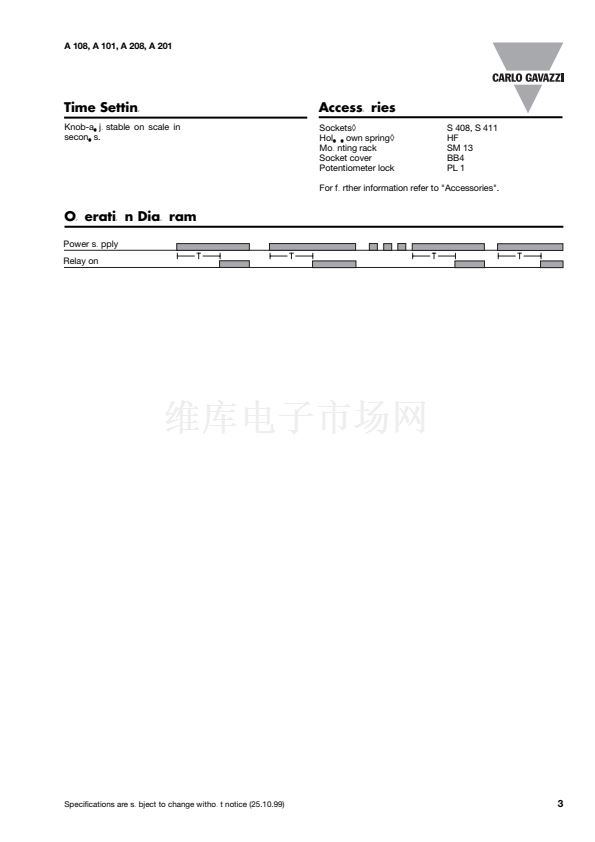

Specifications are subject to change without notice (25.10.99)
1
