A-0709P6.1AWF Datasheet

  • A-0709P6.1AWF

  • CIRCUIT INTERRUPTION TECHNOLOGY INC

  • 1頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

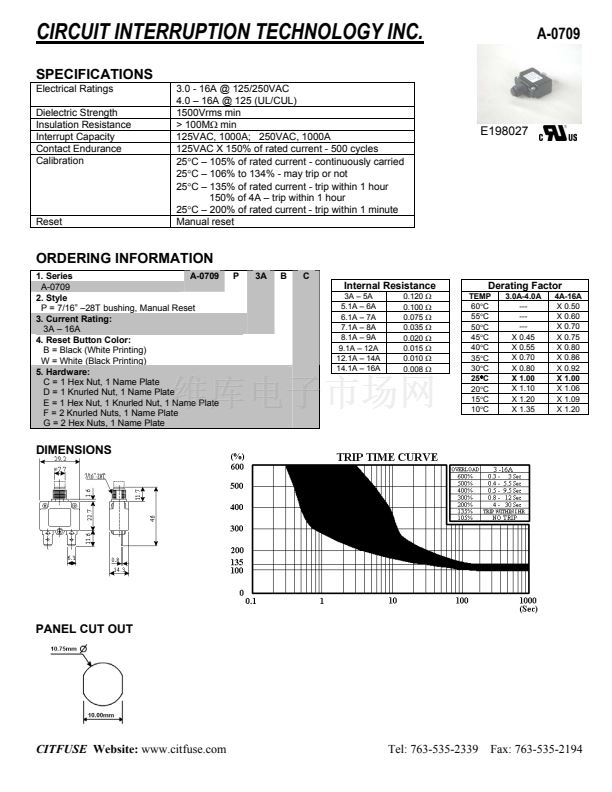

CIRCUIT INTERRUPTION TECHNOLOGY INC.
SPECIFICATIONS
Electrical Ratings
Dielectric Strength
Insulation Resistance
Interrupt Capacity
Contact Endurance
Calibration
3.0 - 16A @ 125/250VAC
4.0 鈥?16A @ 125 (UL/CUL)
1500Vrms min
> 100M鈩?min
125VAC, 1000A; 250VAC, 1000A
125VAC X 150% of rated current - 500 cycles
25擄C 鈥?105% of rated current - continuously carried
25擄C 鈥?106% to 134% - may trip or not
25擄C 鈥?135% of rated current - trip within 1 hour
150% of 4A 鈥?trip within 1 hour
25擄C 鈥?200% of rated current - trip within 1 minute
Manual reset
A-0709
E198027
Reset
ORDERING INFORMATION
1. Series
A-0709
A-0709
2. Style
P = 7/16鈥?鈥?8T bushing, Manual Reset
3. Current Rating:
3A 鈥?16A
4. Reset Button Color:
B = Black (White Printing)
W = White (Black Printing)
5. Hardware:
C = 1 Hex Nut, 1 Name Plate
D = 1 Knurled Nut, 1 Name Plate
E = 1 Hex Nut, 1 Knurled Nut, 1 Name Plate
F = 2 Knurled Nuts, 1 Name Plate
G = 2 Hex Nuts, 1 Name Plate
P
3A
B
C
Internal Resistance
3A 鈥?5A
5.1A 鈥?6A
6.1A 鈥?7A
7.1A 鈥?8A
8.1A 鈥?9A
9.1A 鈥?12A
12.1A 鈥?14A
14.1A 鈥?16A
0.120
鈩?/div>
0.100
鈩?/div>
0.075
鈩?/div>
0.035
鈩?/div>
0.020
鈩?/div>
0.015
鈩?/div>
0.010
鈩?/div>
0.008
鈩?/div>
Derating Factor
TEMP
60擄C
55擄C
50擄C
45擄C
40擄C
35擄C
30擄C
25擄C
20擄C
15擄C
10擄C
3.0A-4.0A
---
---
---
X 0.45
X 0.55
X 0.70
X 0.80
X 1.00
X 1.10
X 1.20
X 1.35
4A-16A
X 0.50
X 0.60
X 0.70
X 0.75
X 0.80
X 0.86
X 0.92
X 1.00
X 1.06
X 1.09
X 1.20
DIMENSIONS
PANEL CUT OUT
CITFUSE
Website:
www.citfuse.com
Tel: 763-535-2339
Fax: 763-535-2194
