TI TPS54383雙路異步轉換器應用方案

查看最近90天中添加的最新產品 最新電子元器件資料免費下載 派睿電子TI有獎問答 - 送3D汽車鼠標 IR推出采用焊前金屬的汽車級絕緣柵雙極晶體管 全球電子連接器生產商—samtec 最新斷路器保護套
　　TI公司的TPS54383 和TPS54386是雙輸出異步降壓DC/DC轉換器,輸入電壓從4.5V到28V,輸出電流可高達3A,輸出電壓則在0.8V和輸入電壓的90%之間.主要應用在機頂盒,數字TV,DSP電源和消費類電子產品.本文介紹了TPS54383 和TPS54386的主要性能,功能方框圖以及多種詳細的設計案例.

　　TI 3-A DUAL NON-SYNCHRONOUS CONVERTER WITH INTEGRATED HIGH-SIDE MOSFET
The TPS54383 and TPS54386 are dual output, non-synchronous buck converters capable of supporting 3-A output applications that operate from a 4.5-V to 28-V input supply voltage, and require output voltages between 0.8 V and 90% of the input voltage.

　　With an internally-determined operating frequency, soft start time, and control loop compensation, these converters provide many features with a minimum of external components. Channel 1 overcurrent protection is set at 4.5 A, while Channel 2 overcurrent protection level is selected by connecting a pin to ground, to BP, or left floating. The setting levels are used to allow for scaling of external components for applications that do not need the full load capability of both outputs.

　　The outputs may be enabled independently, or may be configured to allow either ratiometric or sequential startup sequencing. Additionally, the two outputs may be powered from different sources.




主要特性:
4.5-V to 28-V Input Range
Output Voltage Range 0.8 V to 90% of Input Voltage
Output Current Up to 3 A
Two Fixed Switching Frequency Versions:
TPS54383: 300 kHz
TPS54386: 600 kHz
Three Selectable Levels of Overcurrent Protection (Output 2)
0.8-V 1.5% Voltage Reference
2.1-ms Internal Soft Start
Dual PWM Outputs 180° Out-of-Phase
Ratiometric or Sequential Startup Modes Selectable by a Single Pin
85-m  Internal High-Side MOSFETs
Current Mode Control
Internal Compensation (See Page 16)
Pulse-by-Pulse Overcurrent Protection
Thermal Shutdown Protection at +148°C
14-Pin PowerPAD™ HTSSOP package
應用:
Set Top Box
Digital TV
Power for DSP
Consumer Electronics

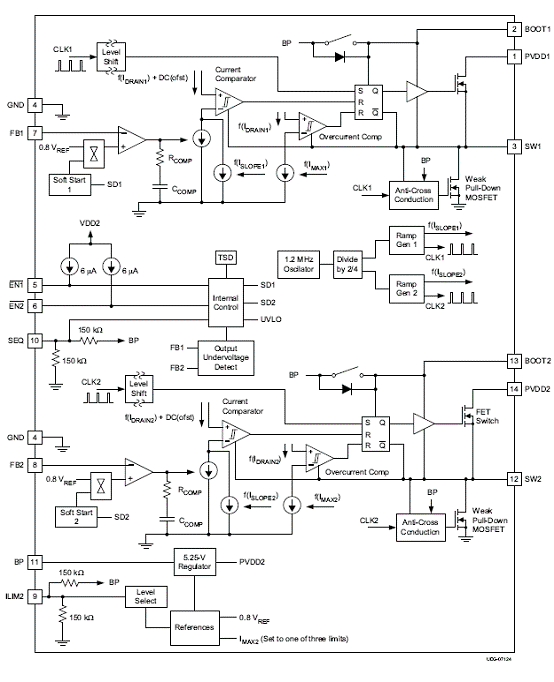

圖1. TPS54383/6方框圖。

設計案例:
案例1: 12-V 到5-V 和3.3-V轉換器的詳情設計
　　The following example illustrates a design process and component selection for a 12-V to 5-V and 3.3-V dual non-synchronous buck regulator using the TPS54383 converter.



　　表1.設計案例所用元件清單(BOM)



案例2: 24-V到12-V 以及24-V 到5-V轉換器詳細設計
　　For a higher input voltage, both a snubber and bootstrap resistors are added to reduce ringing on the switch node and a 30 V schottky diode is selected. A higher resistance feedback network is chosen for the 12 V output to reduce the feedback current.



案例3: 5-V 到3.3V 以及5-V 到1.2 V詳細設計
　　For a low input voltage application, the TPS54386 is selected for reduced size and all ceramic output capacitors are used. 22-F input capacitors are selected to reduce input ripple and lead capacitors are placed in the feedback to boost phase margin.





  來源:零八我的愛
